Price: $3360

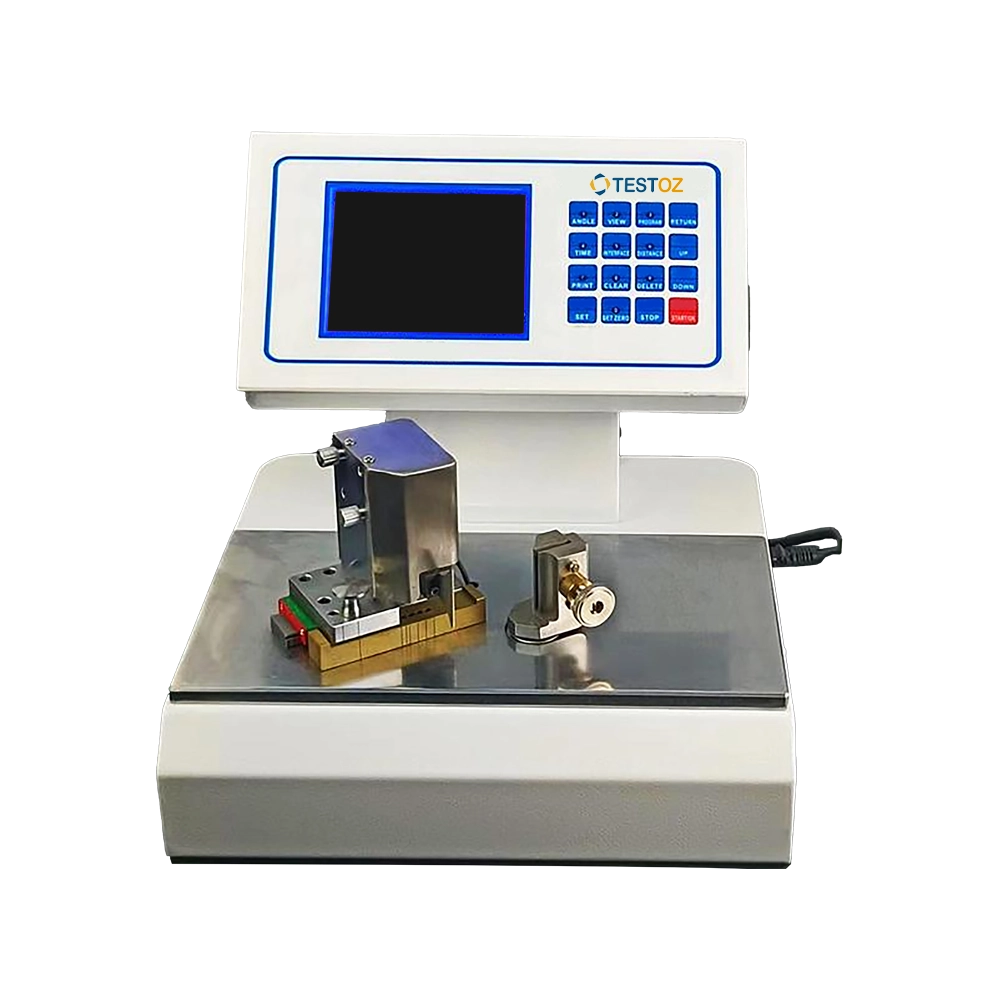

Carton Stiffness Tester TZ-PCT100 is automated with a measuring range of 15 to 10,000 mN·m. It features an adjustable bending length from 5 to 50 mm with a maximum bending angle of 90˚ determining the stiffness or flexibility of materials. It bends the material at a speed of 200˚/min for accurate measurements. Our tester is integrated with a 5.7-inch LCD display for real-time monitoring and easy operation.
Specification
| Measuring Range | 15 to 10000 mN.m |
|---|---|
| Accuracy | Below 50mN: ± 0.6mN; Remaining: ± 1% |
| Resolution | 0.1 mN |
| Indication Variability | ≤1% |
| Bending Length | 50/25/20/15/10/5 |
| Bending Angle | (± 7.5° or ± 15°) ± 0.3° (1° to 90° range) |
| Test Speed | 200° ± 20° / min |
| Operating Temperature | 20 to 40 ℃ |
| Humidity | < 85% |
| Standards | GB/T 2679.3, GB/T 23144, ISO 5628, ISO 2493, ASTM D 5342 |
| Dimensions (L × W × H) | 340 × 330 × 340 mm |
| Weight | 15 kg |
Features
Automatic zero adjustment
Adjustable test time
Integrated with thermal printer
Complies with international standards
Applications
Carton Stiffness Tester TZ-PCT100 is designed to measure the stiffness or rigidity of corrugated cardboard and paperboard materials. It is used for quality control, material research and development, compliance testing, and product development.
