Get Quote
Price: $1200

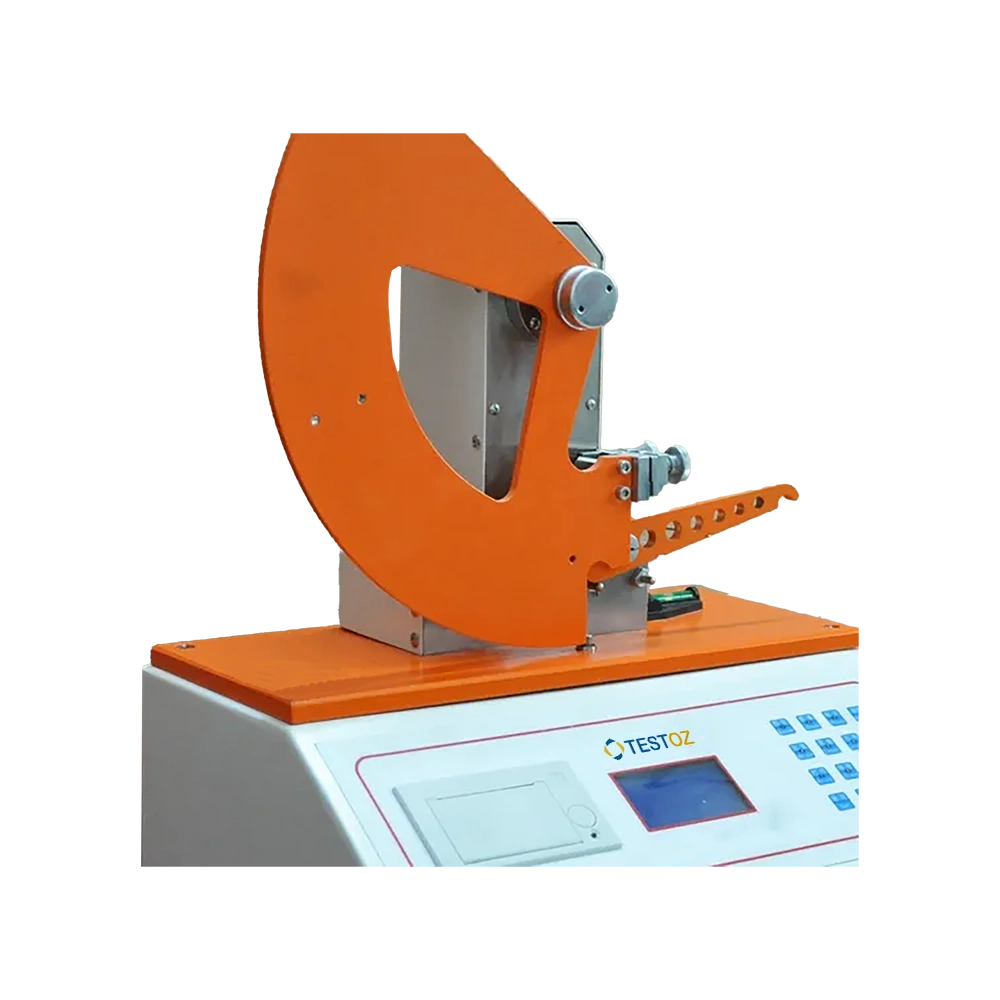

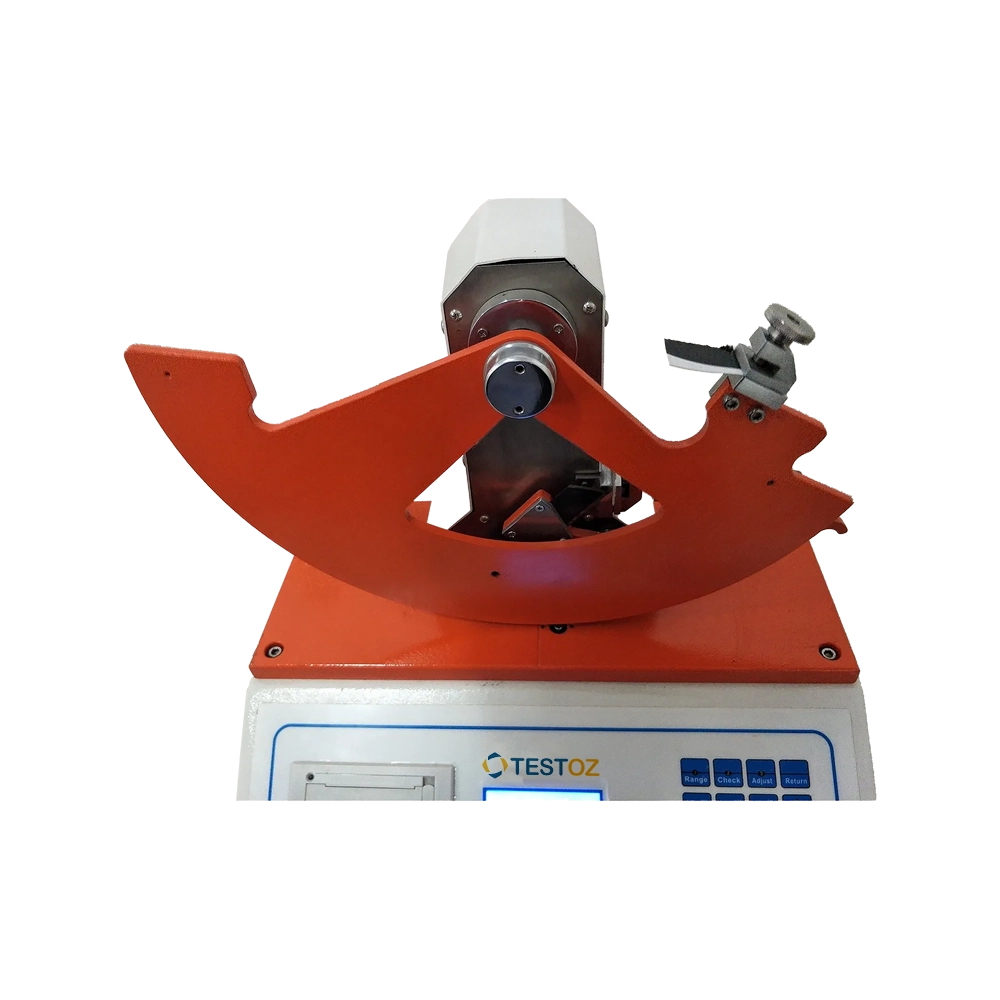

Tearing Strength Tester TZ-PTS100 is a microprocessor-controlled unit and operates within a measurement range from 10 to 1000mN. It is integrated with a tearing arm with a length of 104 mm ensuring consistent force across different test samples. It features a specified angle of 27.50° which allows for controlled and standardized tearing conditions during testing.
Specification
| Measuring Range | 10 to 1000 mN |
|---|---|
| Test Method | Elmendorf method |
| Standard Arm |
10 to 1000 mN minimum degree: 10mN |
| Light Arm |
10 to 500 mN minimum degree: 5 mN |
| Error |
Maximum range20% to 80% ±1% Out range±0.5%FS |
| Tearing Arm | 104 ± 1 mm |
| Beginning Angle for Tearing | 27.50 ± 0.50° |
| Tearing Distance | 43±0.5mm |
| Specimen Size | 25×15 mm |
| Clamp Distance | 2.8±0.3mm |
| Value Accuracy | 1 grade |
| Standards | ISO 1974, ASTM D689-03, GB455.1, ISO6383/2-1983 |
| Dimension | 420 × 300 × 465 mm |
| Weight | 20 kg |
Features
Applications
Tearing Strength Tester is an advanced instrument designed to measure the tearing strength of various materials, including paper, cardboard, textiles, and plastic films.
Testoz Paper Testing Equipment are designed to deliver precision and accuracy in assessing a wide range of paper properties. They measure various parameters such as brightness, opacity, grammage, thickness, tensile strength, and fold endurance. Our instruments include calibration options to maintain accuracy and ensure reliable measurements. They also support extensive data storage and management capabilities for further analysis of results. Built for durability, these portable instruments are perfect for on-site testing and are equipped to withstand industrial environments. They comply with various international testing standards such as ISO, TAPPI, and ASTM, enhancing your product quality.
Our Packaging Testing Equipment provide accurate testing for materials like paper, cardboard, plastic, and flexible packaging, ensuring structural integrity of products. These assess packaging durability against pressure, physical forces, and environmental conditions during shipping, storage, and handling. They are equipped with advanced digital controls, providing user-friendly operation with high precision. Our instruments have built-in calibration to ensure accuracy and maintain consistency in quality control processes. Designed to comply with global standards such as ISO, ASTM, and TAPPI, these instruments ensure quality control for packaging materials across industries.
