Plastic and Rubber Testing Equipment

ISO, ASTM, GB/T, EN, DIN, HG/T QB/T

Plastic and Rubber Testing Equipment are equipped with advanced sensors, and high-accuracy load cells and evaluate critical properties. Our testers are designed for versatility featuring customizable testing modes, adjustable grips, and fixtures to accommodate diverse sample types and testing requirements. These instruments are integrated with intuitive touchscreen interfaces for real-time monitoring of parameters and easy operation. They are crafted with robust materials for long-term durability and reliable performance. These are engineered to meet and exceed international standards such as ISO 37, ISO 527, ISO 1133, ASTM D2240, ASTM D638, DIN 53504, and DIN 53505 to ensure material quality, performance, and compliance with industry regulations.

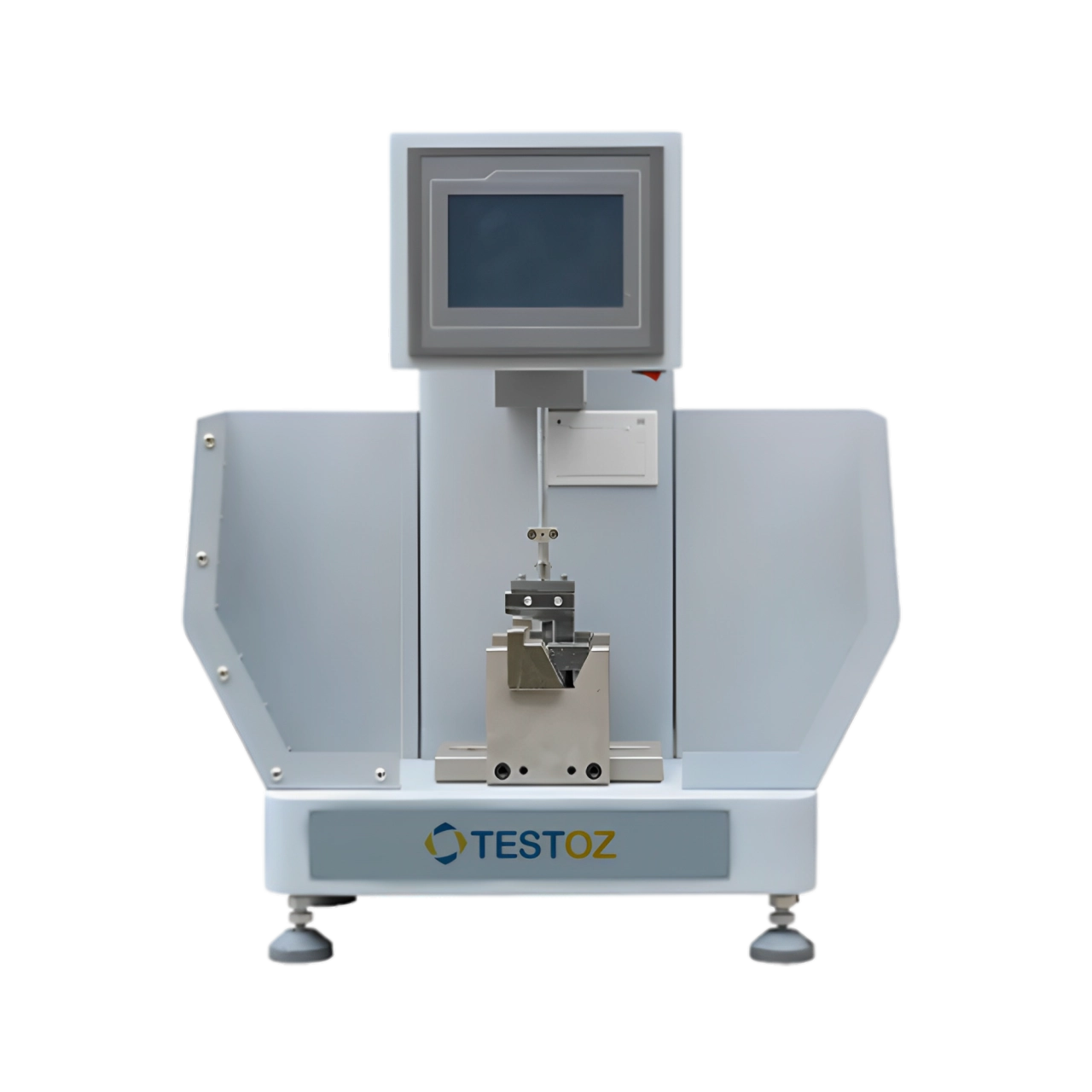

Charpy Impact Tester TZ-PCI100

Charpy Impact Tester TZ-PCI100

  • Impact Speed: 2.9 m/s
  • Impact Energy: 2J, 4J, 5J
  • Impact Angle: 150°
  • Radius of Rounded Corner: R = 2 mm (Impact Blade)

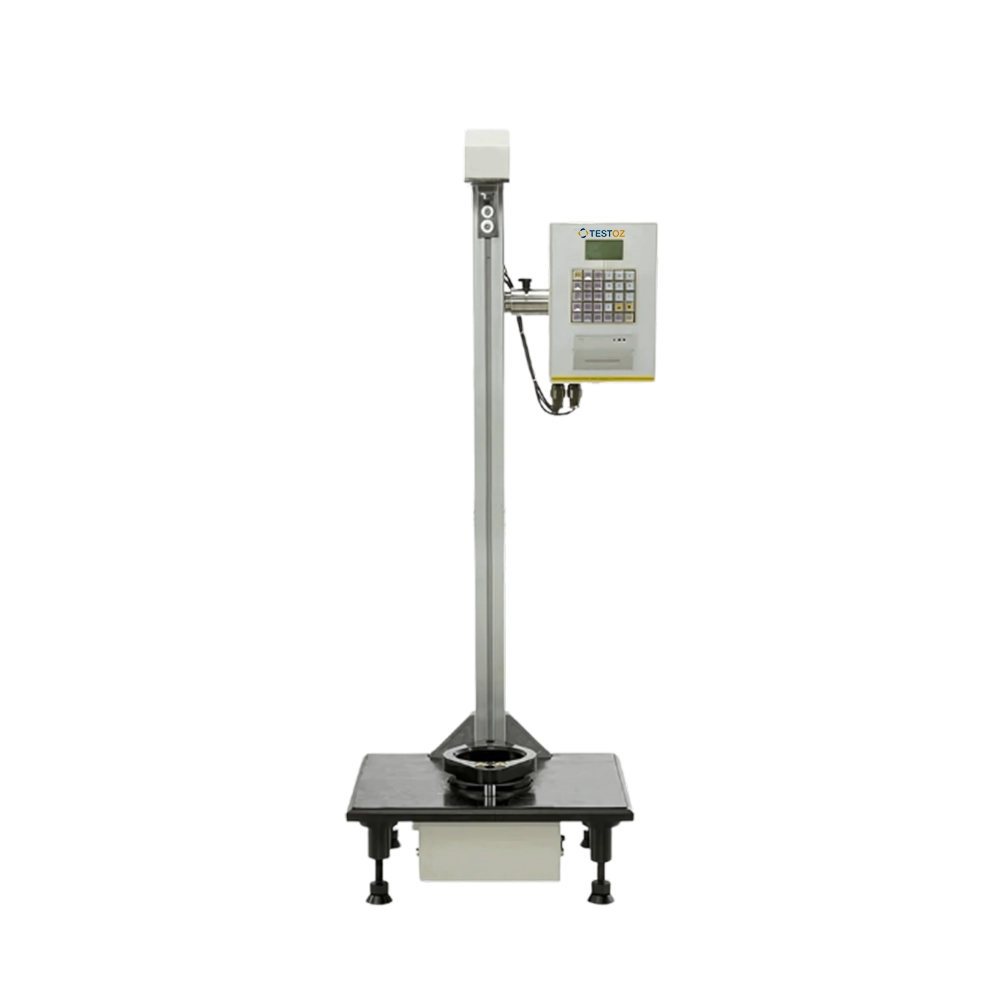

Falling Dart Impact Tester TZ-PIT100

Falling Dart Impact Tester TZ-PIT100

  • Test Method: Method A or Method B
  • Test Range: Method A: 50 to 2000 g<br> Method B: 300 to 2000 g
  • Accuracy: 0.1 g (0.1 J)
  • Specimen Clamp: Pneumatic Clamp
Shore Hardness Tester TZ-PSHT100

Shore Hardness Tester TZ-PSHT100

  • Test Scale: Shore A
  • Hardness: <20HD
  • Measuring Range: 0 to 100 HA
  • Tolerance: ±1 HA
Shore Hardness Tester TZ-PSHT101
Shore Hardness Tester TZ-PSHT101
  • Hardness Scale: Shore D
  • Measuring Range: 0 to 100 HD
  • Hardness: >90HA
  • Tolerance: ≤±1 HD (within 20 to 90 HD)
Shore Hardness Tester TZ-PSHT102
Shore Hardness Tester TZ-PSHT102
  • Test Scale: Shore AO
  • Hardness: <20HA
  • Measuring Range: 0 to 100 HAO
  • Tolerance: 0.1 HAO
Shore Hardness Tester TZ-PSHT103

Shore Hardness Tester TZ-PSHT103

  • Test Scale: Asker-c
  • Measuring Range: 0 to 100 Hc
  • Tolerance: ≤±1Hc (20 to 90)
  • Display Resolution: 0.1 Hc
