Leather Testing Equipment

SATRA , ISO, ASTM, DIN, JIS K , QB/T, GB/T

Testoz Leather Testing Equipment are designed to provide comprehensive evaluations for quality assurance in the leather industry. Our instruments feature physical property measurements, assessing tensile strength, elongation, and other mechanical properties. These are equipped with user-friendly interfaces and intuitive controls to ensure easy operation. Additionally, many of our models comply with international testing standards such as ISO, ASTM, and AATCC. These instruments feature data recording capabilities for efficient analysis and enhance the workflow. Our range includes Leather Lastometer, Bally Resistance Flexing Tester, Upper and Vamp Material Flexing Tester, Leather Softness Tester, Linear Abrasion Tester and many more.

DIN Abrasion Tester TZ-DAT100

DIN Abrasion Tester TZ-DAT100

  • Test Load: 2.5N, 5N, 10N
  • Roller Diameter: 150 mm
  • Roller Length: 460 mm
  • Roller Speed: 40 rpm
IULTCS & Veslic Leather Abrasion Tester TZ-LAT100

IULTCS & Veslic Leather Abrasion Tester TZ-LAT100

  • Position: 1
  • Area of Testing Head: 15mm x 15mm
  • Movement Speed: 40 ± 2 times/min
  • Rubbing Stroke: 35 to 40 mm
IULTCS & Veslic Leather Abrasion Tester TZ-LAT101

IULTCS & Veslic Leather Abrasion Tester TZ-LAT101

  • Position: 2
  • Area of Testing Head: 15mm x 15mm
  • Movement Speed: 40 ± 2 times/min
  • Rubbing Stroke: 35 to 40 mm
IULTCS & Veslic Leather Abrasion Tester TZ-LAT102
IULTCS & Veslic Leather Abrasion Tester TZ-LAT102
  • Test Positions: 4
  • Area of Testing Head: 15mm x 15mm
  • Movement Speed: 40 ± 2 times/min
  • Rubbing Stroke: 35 to 40 mm
Linear Abrasion Tester TZ-LTA100
Linear Abrasion Tester TZ-LTA100
  • Test Station: 1
  • Test Trip: 0101.6 mm
  • Test Speed: 2 to 72 rpm
  • Weights: 250 g, 6 pcs

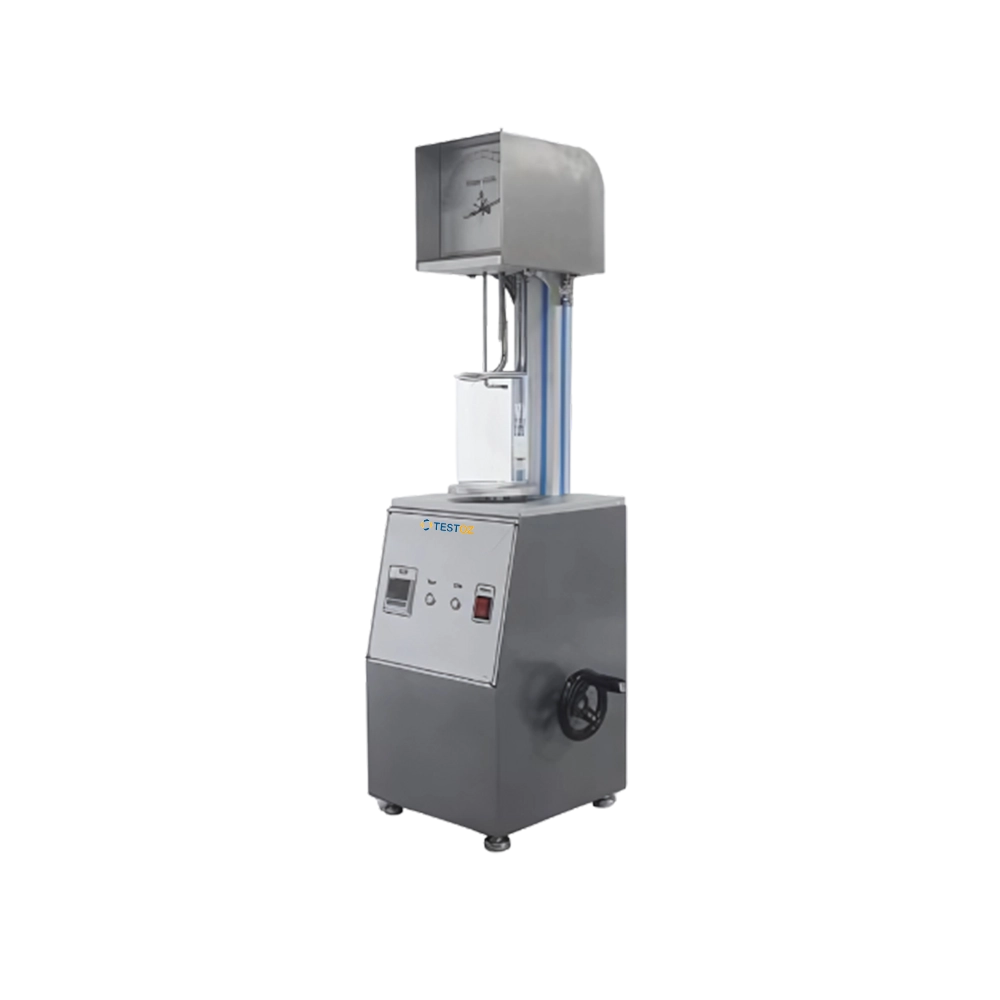

Leather Shrinkage Temperature Tester TZ-LST100

Leather Shrinkage Temperature Tester TZ-LST100

  • Beaker: Volume: 1000 mL, Depth: 140 mm
  • Fixed Test Piece Holder: 30 ± 5 mm above the base of the vessel
  • Indicator Resolution: 0.3%
  • Temperature Rising Rate: 2 °C/min
Leather Digital Lastometer TZ-LDL100

Leather Digital Lastometer TZ-LDL100

  • Maximum Load: 1000N
  • Clamp Diameter: 25mm
  • Bursting Ball Diameter: 6.25mm
  • Speed: 12mm/min
BALLY Water Penetration Tester TZ-LBPT100

BALLY Water Penetration Tester TZ-LBPT100

  • Testing Positions: 6
  • Clamp Cylinder: ¢30.0 ± 0.5 mm
  • Clamps Max. Apart: 40 ± 0.5 mm
  • Move Clamp Stroke: 2, 3, 4, 6 mm
Maeser Water Penetration Tester TZ-MPT100
Maeser Water Penetration Tester TZ-MPT100
  • Work Stations: 4
  • Clamps: V-shaped
  • Clamps Tip Radius: 7.5 ± 0.5 mm
  • Moving Fixture Flexing Angle: 32 ± 1°
Water Vapor Absorption Tester TZ- LWAT100
Water Vapor Absorption Tester TZ- LWAT100
  • Positions: 6 sets
  • Volume of Testing Cup: 100 mL
  • Inner Diameter of Hole: 35 mm
  • Sample Size: 43 mm
Water Vapor Permeability Tester TZ-LWP100

Water Vapor Permeability Tester TZ-LWP100

  • Testing Bottles: 6 pcs
  • Bottle Mouth Diameter: 30 mm
  • Bottle Holder Speed: 75 ± 5 cpm
  • Fan Blades: 90 x 75 mm, 3 flat blades in planes inclined at 120° to each other
