Leather Abrasion Tester

Leather Abrasion Tester is designed to precisely assess the wear resistance and durability of leather materials under controlled conditions. These instruments simulate dry, wet, and fabric-on-leather abrasion, evaluating leather performance for footwear, apparel and furniture. They feature adjustable parameters for speed, load, and test duration, for diverse testing needs for repeatable and consistent results. They are integrated with an intuitive digital interface for real-time monitoring and easy operation. These are crafted with durable materials and feature multiple sample holders of various sizes and shapes. Our Leather Abrasion Testers comply with ISO 17704, ASTM D3884, ISO 12947, and EN 13520 standards for reliable, standardized results.

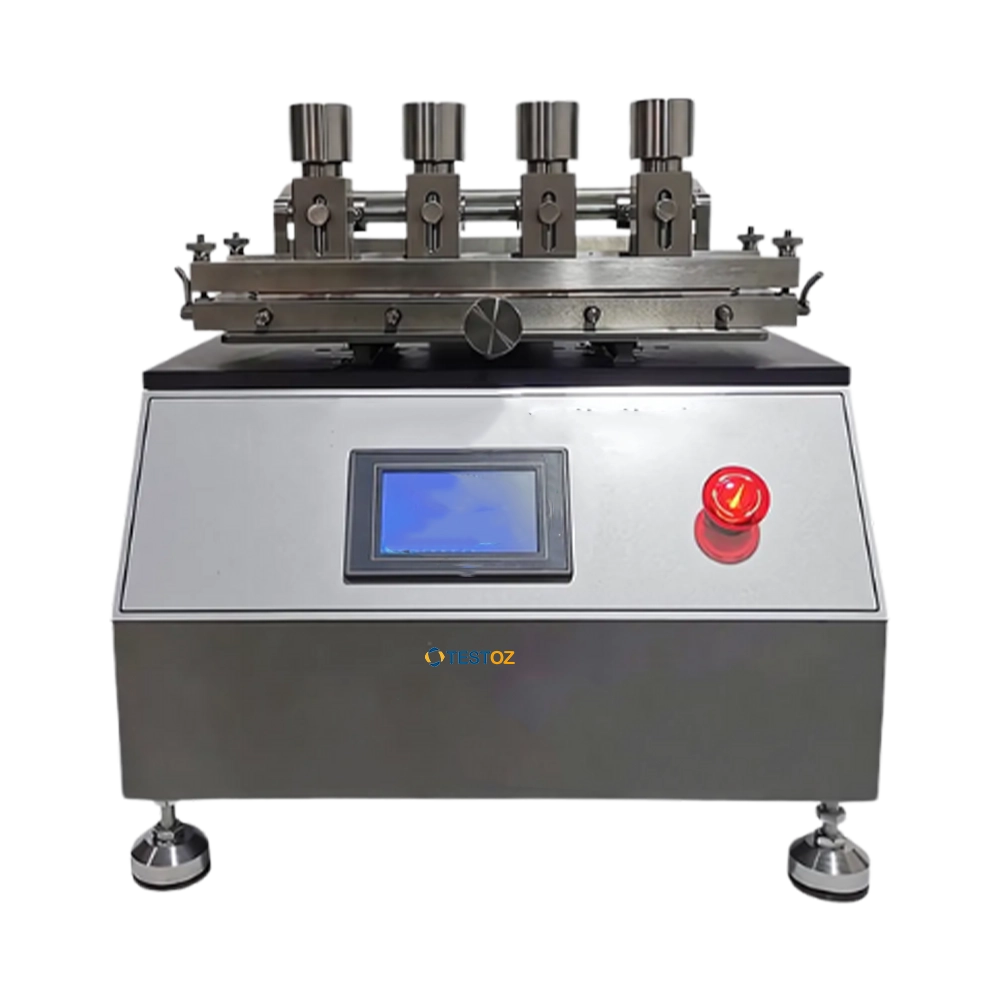

IULTCS & Veslic Leather Abrasion Tester TZ-LAT102

IULTCS & Veslic Leather Abrasion Tester TZ-LAT102

  • Test Positions: 4
  • Area of Testing Head: 15mm x 15mm
  • Movement Speed: 40 ± 2 times/min
  • Rubbing Stroke: 35 to 40 mm

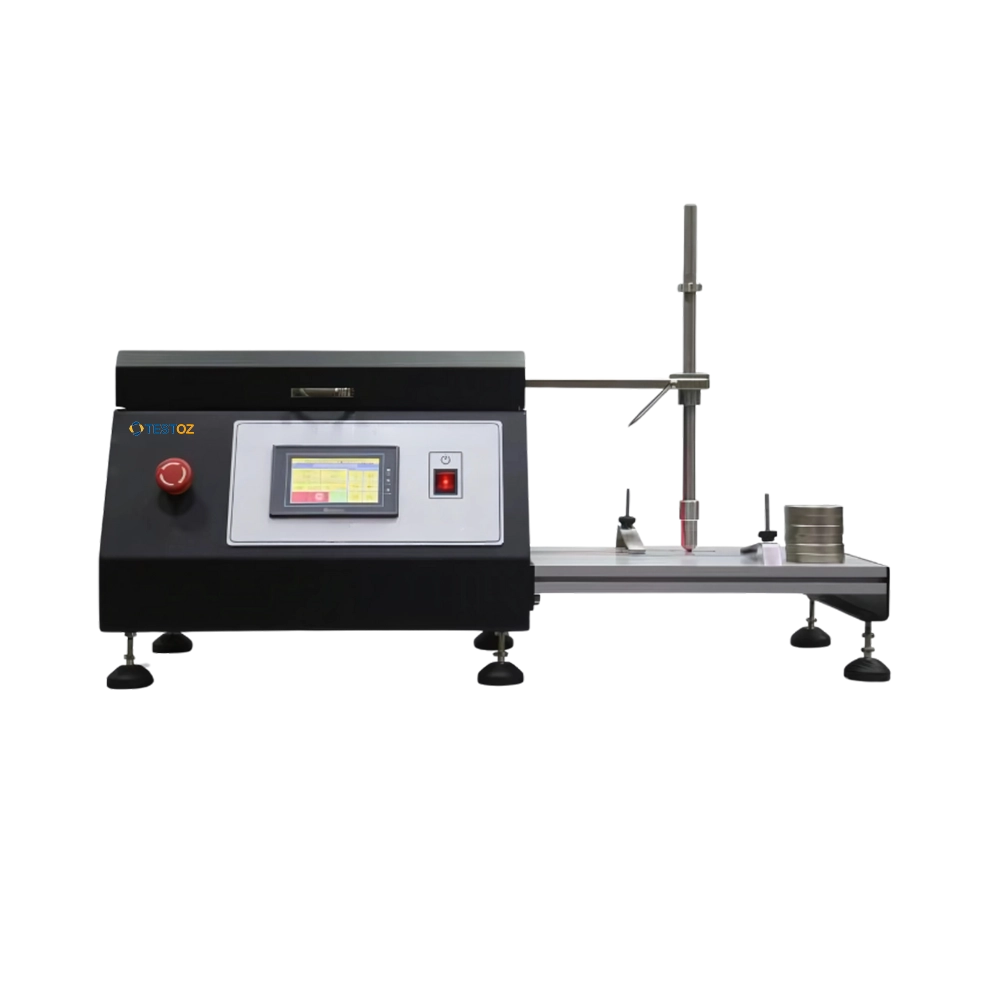

Linear Abrasion Tester TZ-LTA100

Linear Abrasion Tester TZ-LTA100

  • Test Station: 1
  • Test Trip: 0101.6 mm
  • Test Speed: 2 to 72 rpm
  • Weights: 250 g, 6 pcs

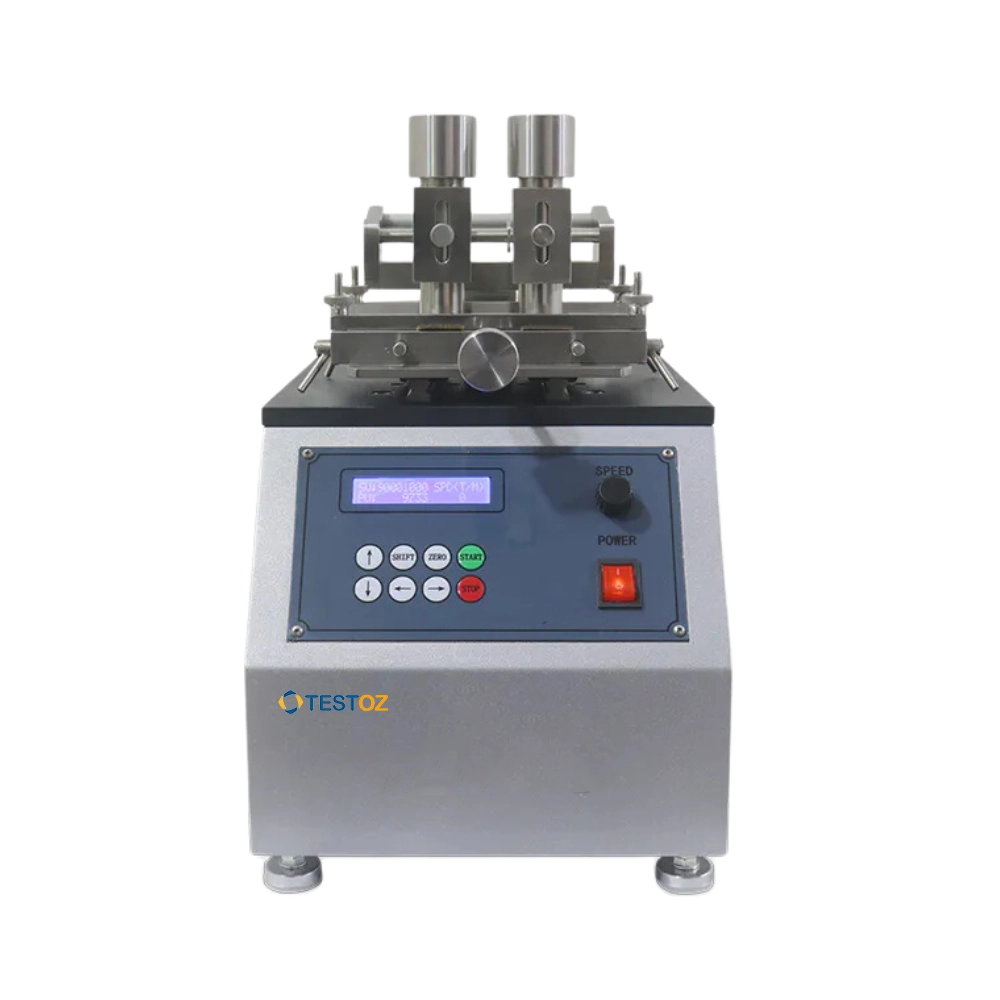

IULTCS & Veslic Leather Abrasion Tester TZ-LAT101

IULTCS & Veslic Leather Abrasion Tester TZ-LAT101

  • Position: 2
  • Area of Testing Head: 15mm x 15mm
  • Movement Speed: 40 ± 2 times/min
  • Rubbing Stroke: 35 to 40 mm

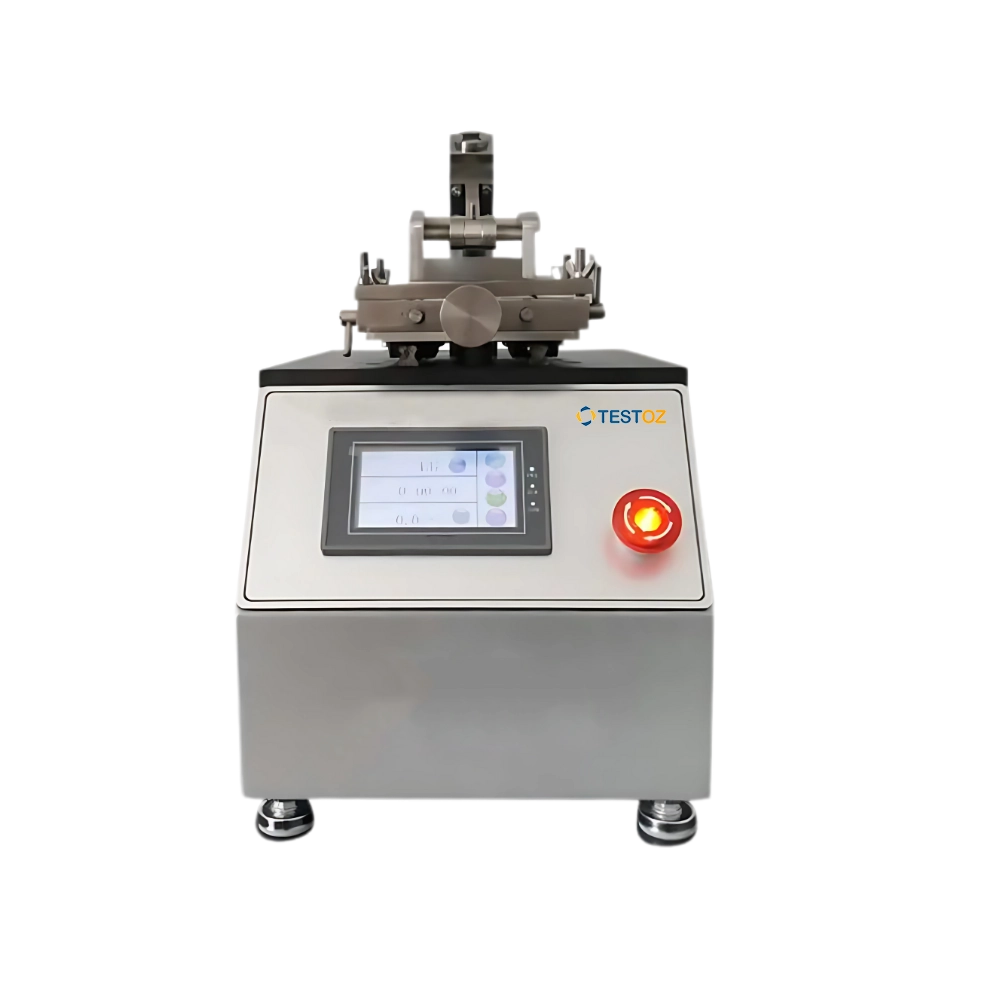

IULTCS & Veslic Leather Abrasion Tester TZ-LAT100
IULTCS & Veslic Leather Abrasion Tester TZ-LAT100
  • Position: 1
  • Area of Testing Head: 15mm x 15mm
  • Movement Speed: 40 ± 2 times/min
  • Rubbing Stroke: 35 to 40 mm

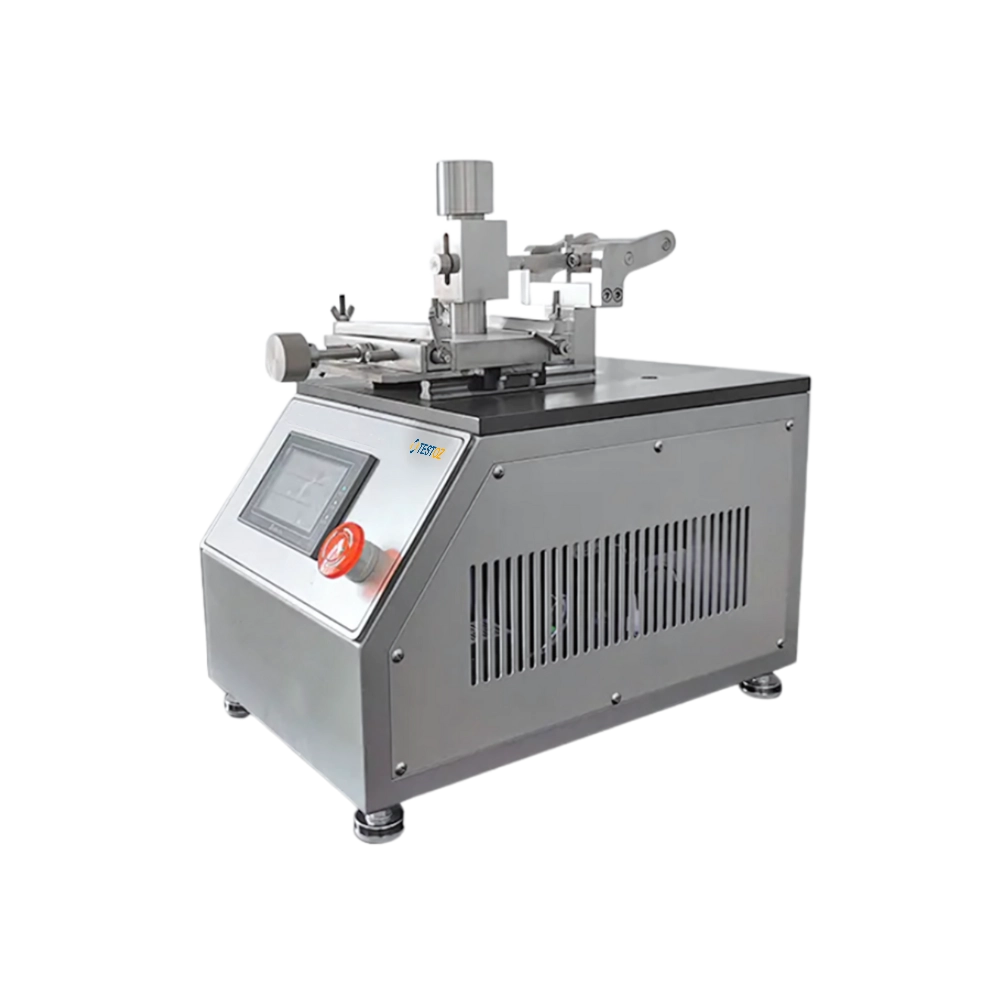

DIN Abrasion Tester TZ-DAT100
DIN Abrasion Tester TZ-DAT100
  • Test Load: 2.5N, 5N, 10N
  • Roller Diameter: 150 mm
  • Roller Length: 460 mm
  • Roller Speed: 40 rpm
