Geotextile Tester

Geotextile Testers are designed to provide comprehensive testing capabilities and accurately measure critical properties. These are built to endure high forces and repeated testing making them reliable in various environments. They are equipped with high-resolution digital displays for clear data visualization, and automated control systems for efficient operation. Features versatile sample holders that accommodate various material sizes and types. Our testers comply with international standards such as ASTM D4595, ASTM D4833, ASTM D4491, ISO 10319 and ISO 12236 ensuring that results are reliable, dependable and meet industry requirements.

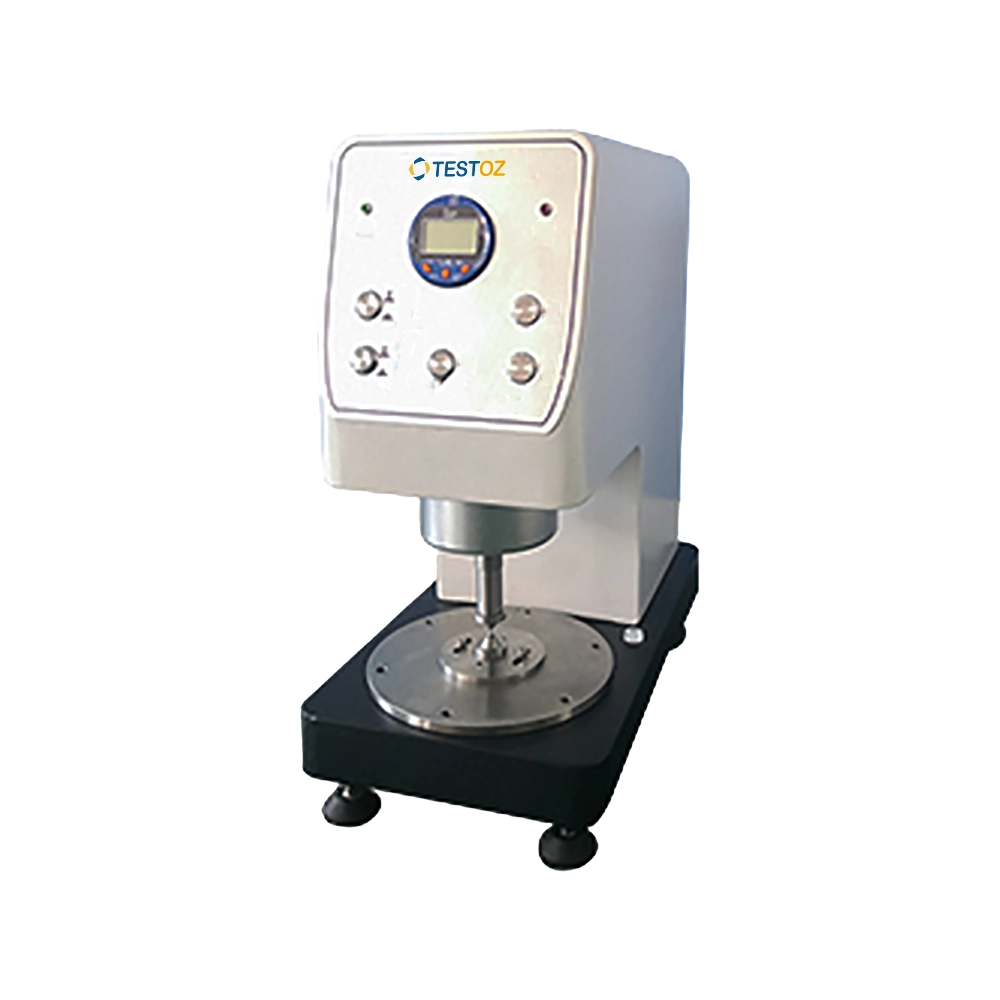

Geomembrane Thickness Gauge TZ-GTG100

Geomembrane Thickness Gauge TZ-GTG100

  • Sample Pressure: 0.1N to 0.5N (glossy)
  • Thickness Range: 0 to 12mm
  • Minimum Index Value: 0.001mm
  • Upper Measuring Surface Radius of Curvature: SR15mm to SR50mm (glossy configuration)

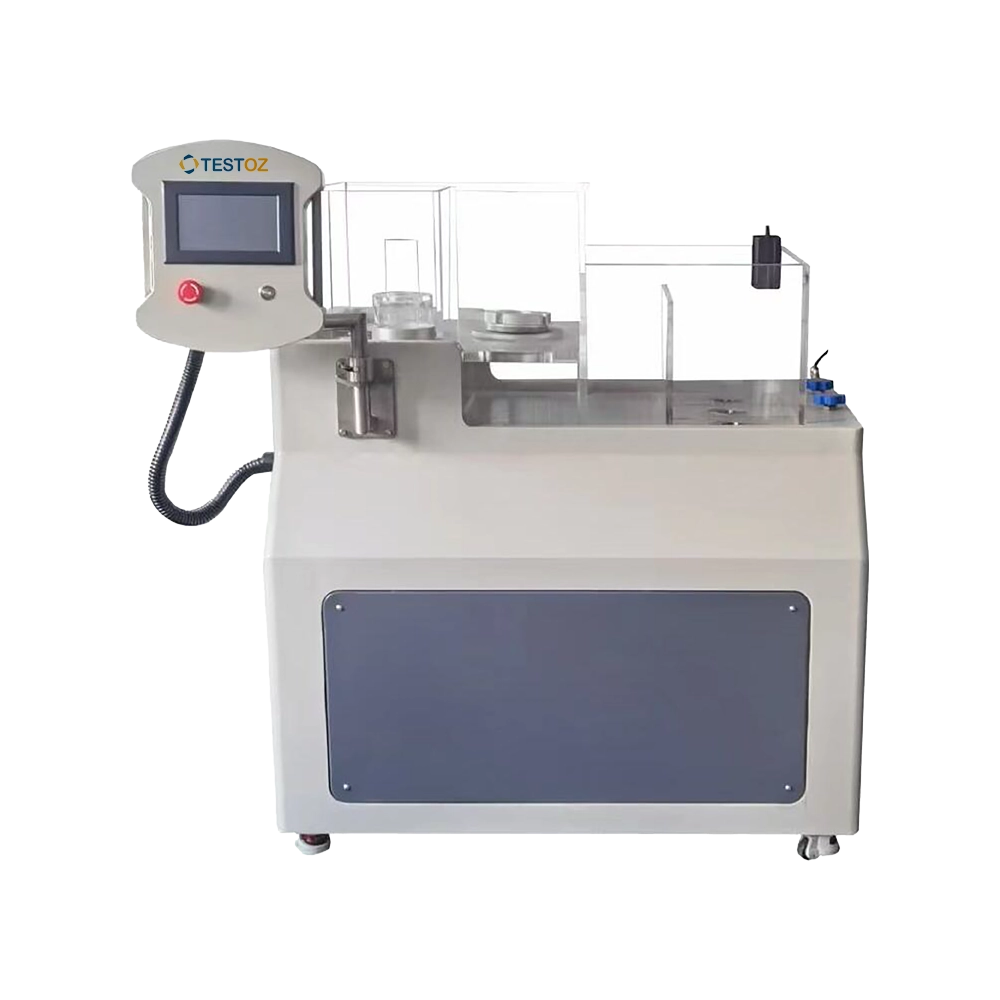

Geotextile Water Permeability Tester TZ-GWT100

Geotextile Water Permeability Tester TZ-GWT100

  • Pressure Head: 0 to 250 mm, automatic positioning
  • Holder Inner Diameter: 50 mm ± 0.2 mm
  • Clamping Mode: Vertical type
  • Thermometer Range: 0 to 50℃ ± 0.2℃
