Price: $720

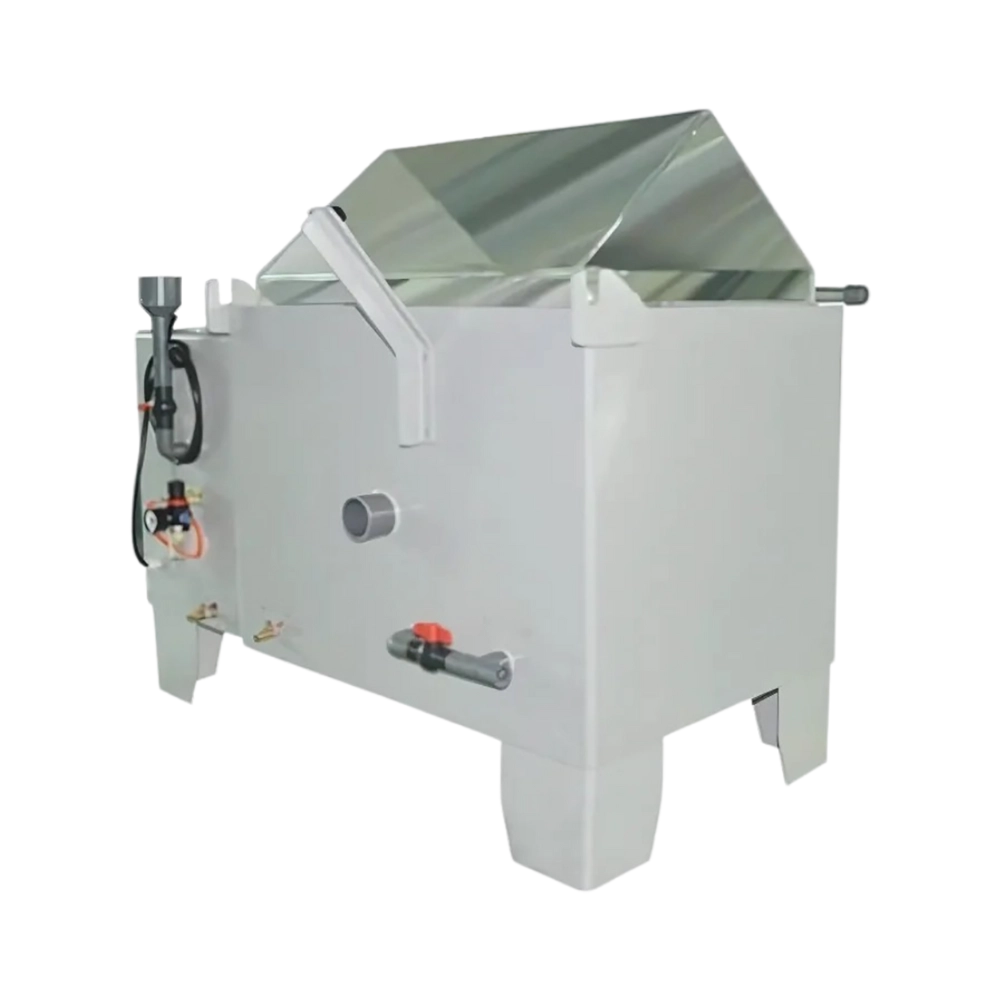

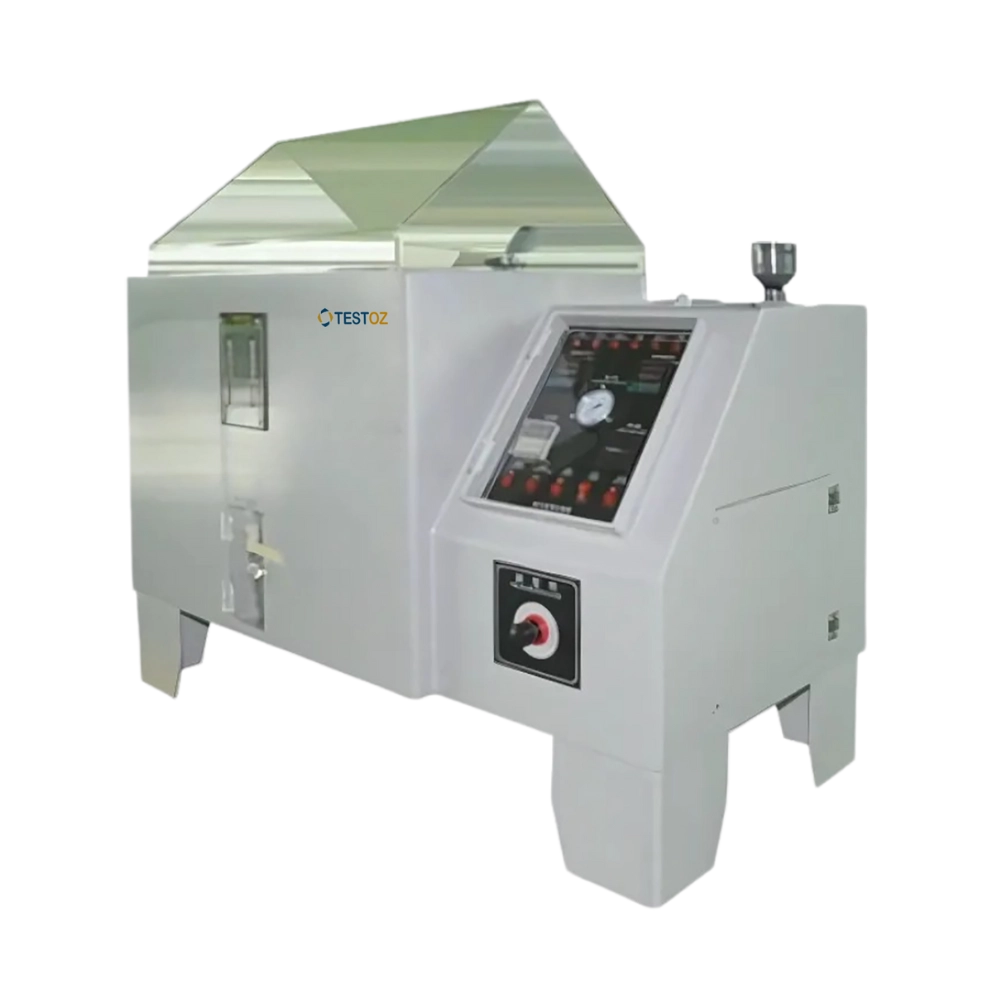

Salt Spray Test Chamber TZ-SST100 features a volume of 108 liters accommodating multiple samples or larger samples for testing. It is equipped with a 15-litre brine tank for continuous testing and maintains accuracy and integrity. Our chamber has spray quantities ranging from 1.0 to 2.0 ml/80 cm²/hour to ensure each sample is uniformly exposed to the salt solution. It tests the corrosion resistance of materials like paints, electroplating, non-organic coatings, and pastry films to ensure their durability.
Specification
| Capacity | 108L |
|---|---|
| Brine Tank Capacity | 15L |
| Test Equipment Temperature Range | RT to 55℃ |
| Pressure Tank Temperature Range | RT to 70℃ |
| Temperature Fluctuation | ≤±0.5℃ |
| Temperature Uniformity | ≤±2℃ |
| Temperature Precision | ±1℃ |
| Spray Pressure | 1.00±0.1kgf/cm² |
| Spray Type | Continuous or intermittent |
| Safety Functions |
Current discharge protection over pressure protection over temperature protection overload fuse protection |
| Standards |
CNS3627,3885,4159,7669,8886 ISO3768,3769,3770, ASTM B-117, B-268 JISD-0201,H-8502,H-8610,K-5400,Z-2371 GB-T2423, GBJ-150 |
| Power | AC220V, 15A |
| Internal Dimension (W × H × D) | 600 × 400 × 450 mm |
| External Dimension (W × H × D) | 1070 × 600 ×1180 mm |
| Weight | 110 kgs |
Features
Continuous or intermittent spray-type
Overtemperature and overload protection
Low level water alarm
Prevents crystal salt blockage
Direct steam heating method
Complies with international standards
Applications
Salt Spray Chamber is designed to evaluate corrosion resistance and is widely utilized in coating and paint testing, automotive industry, material research and development, electronics and electrical components.
Our Salt Spray Test Chamber offers a wide range of capacities and is designed for high-precision corrosion testing for evaluating the long-term durability of materials and coatings. These chambers are built with corrosion-resistant materials such as fibreglass-reinforced plastic to ensure maximum longevity and performance. They feature advanced temperature control for precise regulation, ensuring optimal conditions for salt spray exposure. Our chamber includes programmable timers and automatic solution replenishment for continuous and long-term testing. These are certified to meet ASTM B117, ISO 9227, and DIN 50021 standards, and are ideal for testing corrosion resistance in automotive, aerospace, coatings, and metal finishes.
Testoz Temperature and Humidity Test Chamber offers a wide range of temperatures and precise humidity control for various material testing. They are designed for uniformity and utilize an efficient airflow system to maintain consistent conditions. These feature programmable test profiles that enable users to create custom testing sequences for specific materials or products. Our chambers are crafted with high-quality stainless steel for durability and reliable performance. They comply with all the standards such as ASTM D 3532, IEC 60068-2-30, MIL-STD-810, IEC 60529, ISO 2233 & ASTM E104.
Xenon Test Chambers are equipped with precise temperature and humidity control systems, allowing users to adjust conditions to meet specific testing requirements. They are designed to utilize a xenon arc lamp providing an accurate representation of environmental stress factors. These chambers feature program customizable test cycles and accelerate weathering and degradation processes. They offer real-time monitoring, ensuring that environmental parameters are consistently maintained throughout the test for easy operation and data collection. They provide critical insights into material behavior and improve product design, ensure compliance with industry standards, and facilitate product certification processes.
Testoz Thermal Shock Test Chamber ensures reliable material durability by rapidly transitioning between heat and cold zones, simulating extreme temperature shifts. These provide remote monitoring capabilities for real-time control, ensuring efficient testing. Their outer construction with flame-retardant PU insulation enhances safety and thermal efficiency under extreme test conditions. The fast temperature recovery cycle minimizes downtime between transitions, enhancing test efficiency. Our Thermal Shock Test Chamber includes compressors for the precise temperature control throughout operation.
