Price: $5830

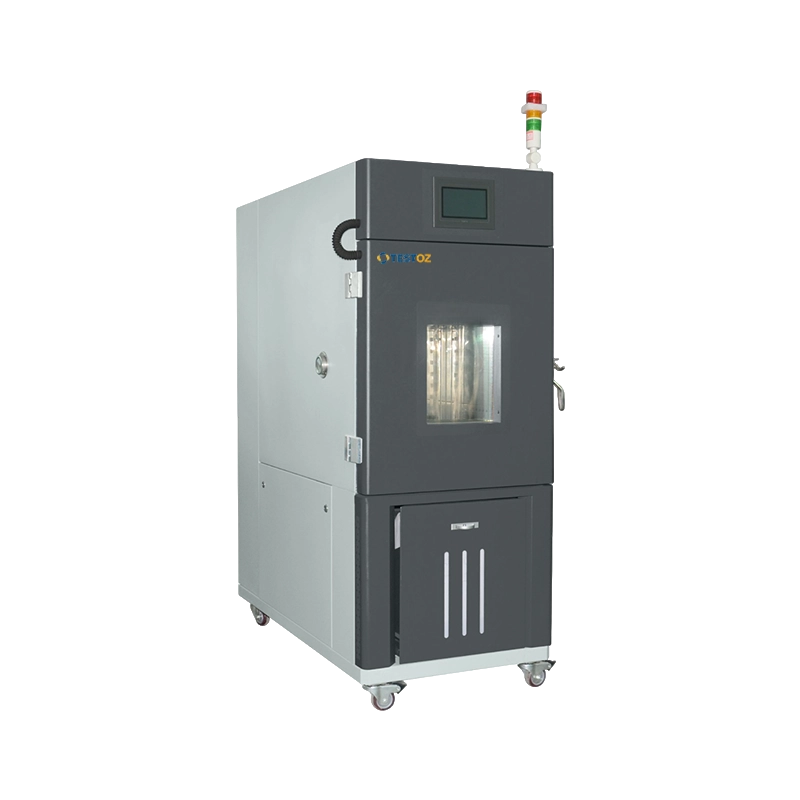

Temperature and Humidity Test Chamber TZ-THC100 operates at a temperature range from -20℃ to 150℃ with a maximum humidity of 98%RH. It features a capacity of 80L accommodating multiple samples ensuring efficiency in testing different products. Our chamber is equipped with a 7-inch LCD touchscreen for real-time monitoring and easy operation. It is designed with a forced convection mechanism to maintain optimal performance and ensure uniformity and stability during testing.
Specification
| Capacity | 80L |
|---|---|
| Temperature Range | -20℃ to +150℃ |
| Humidity Range | 20%RH to 98%RH |
| Temperature Fluctuation | ±0.5℃ |
| Temperature Deviation | ±2.0℃ |
| Humidity Deviation |
±2%/3%RH (>75%RH) ≤±5%RH (<75%RH) |
| Temperature Uniformity | ±2.0℃ |
| Humidity Uniformity | ±2%/3%RH |
| Temperature Heating Time | 3℃/min (average non-linear, no load) |
| Temperature Cooling Time | 1℃/min (+85 to -40℃, non-linear, no load) |
| Internal Chamber Material | SUS304 stainless steel, bottom with 1.0mm thick stainless steel |
| External Chamber Material | Cold rolled steel plate 1.2mm |
| Insulation Material | Polyurethane foam insulation (thickness 100mm) |
| Testing Hole Diameter | 50 mm |
| Air Supply System | Blower with variable frequency speed |
| Heating System | Naked wire type nickel chromium alloy electric heating tube |
| Power Supply | 220V, 50Hz, Single phase, 2KW |
| Internal Dimension (W × H × D) | 400 × 500 × 400 mm |
| External Dimension (W × H × D) | 650 × 1650 × 1270 mm |
| Weight | 250 kgs |
Features
Applications
Temperature and Humidity Test Chamber used to simulate and control environmental conditions and widely utilized in Environmental Testing of electronics and electrical components, material testing, automotive and aerospace testing, textile and packaging industry and product life testing.
Standard Accessories
| Shelves | 2 sets |
| Cotton | 5 pcs |
| Seal | Silicon seal diameter 100mm (4 sets) |
Optional Accessories
Testoz Temperature and Humidity Test Chamber offers a wide range of temperatures and precise humidity control for various material testing. They are designed for uniformity and utilize an efficient airflow system to maintain consistent conditions. These feature programmable test profiles that enable users to create custom testing sequences for specific materials or products. Our chambers are crafted with high-quality stainless steel for durability and reliable performance. They comply with all the standards such as ASTM D 3532, IEC 60068-2-30, MIL-STD-810, IEC 60529, ISO 2233 & ASTM E104.
Our Salt Spray Test Chamber offers a wide range of capacities and is designed for high-precision corrosion testing for evaluating the long-term durability of materials and coatings. These chambers are built with corrosion-resistant materials such as fibreglass-reinforced plastic to ensure maximum longevity and performance. They feature advanced temperature control for precise regulation, ensuring optimal conditions for salt spray exposure. Our chamber includes programmable timers and automatic solution replenishment for continuous and long-term testing. These are certified to meet ASTM B117, ISO 9227, and DIN 50021 standards, and are ideal for testing corrosion resistance in automotive, aerospace, coatings, and metal finishes.
Xenon Test Chambers are equipped with precise temperature and humidity control systems, allowing users to adjust conditions to meet specific testing requirements. They are designed to utilize a xenon arc lamp providing an accurate representation of environmental stress factors. These chambers feature program customizable test cycles and accelerate weathering and degradation processes. They offer real-time monitoring, ensuring that environmental parameters are consistently maintained throughout the test for easy operation and data collection. They provide critical insights into material behavior and improve product design, ensure compliance with industry standards, and facilitate product certification processes.
Testoz Thermal Shock Test Chamber ensures reliable material durability by rapidly transitioning between heat and cold zones, simulating extreme temperature shifts. These provide remote monitoring capabilities for real-time control, ensuring efficient testing. Their outer construction with flame-retardant PU insulation enhances safety and thermal efficiency under extreme test conditions. The fast temperature recovery cycle minimizes downtime between transitions, enhancing test efficiency. Our Thermal Shock Test Chamber includes compressors for the precise temperature control throughout operation.
