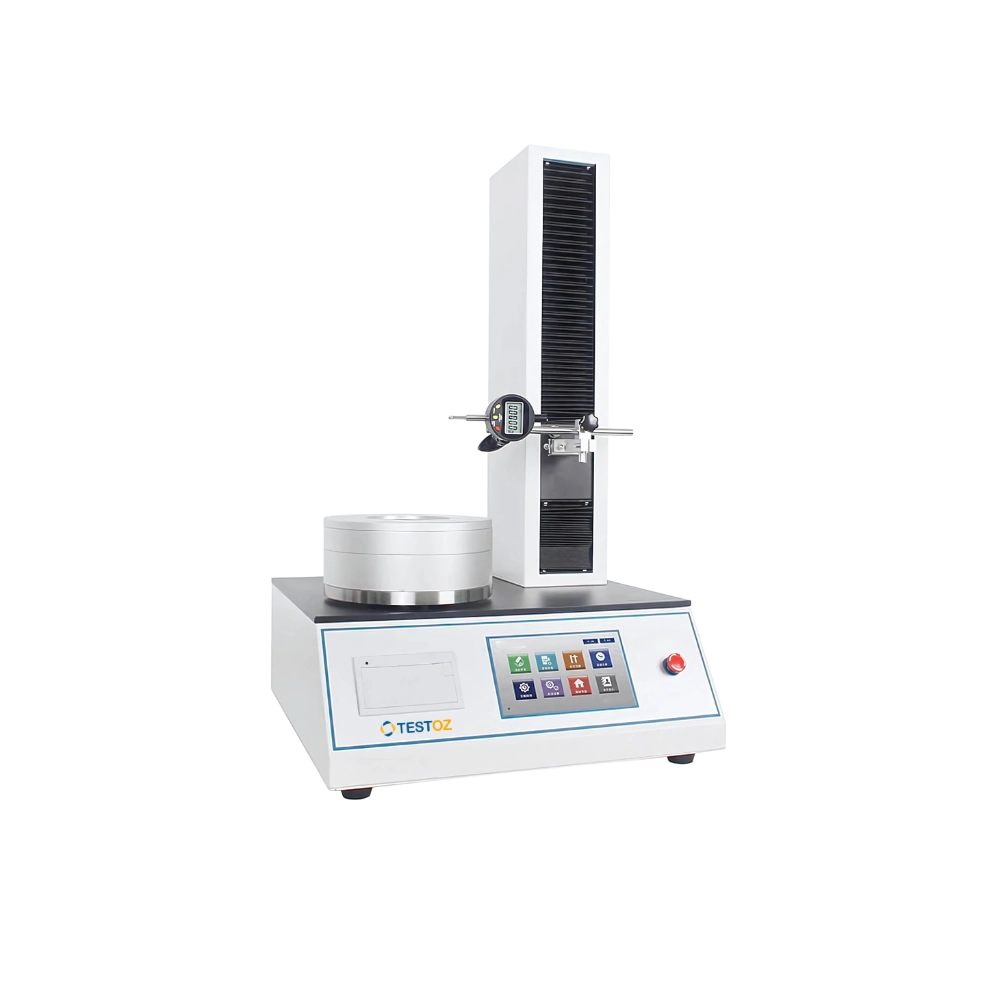

Bottle Perpendicularity Tester TZ-GBPT100 operates with a test range of 0 to 12.7 mm accommodating a broad spectrum of bottle designs. It features a testing head that moves at a controlled speed of 300 mm/min for precise and consistent testing. Our tester can switch between vertical axis deviation and circular runout test modes for optimal performance. It complies with various international standards ensuring reliable performance and quality assurance.
Specification
| Test Range | 0 to 12.7 mm / 0.5″ |
|---|---|
| Resolution | 0.001 mm / 0.00005″ |
| Sample Diameter | 5 to 190 mm |
| Sample Height | 5 to 400 mm |
| Electric Chuck Speed | 2 r/min |
| Testing Head Speed | 300 mm/min |
| Ambient Temperature | 15 to 50℃ |
| Ambient Humidity | 10 to 90% RH |
| Communication Port | USB |
| Power Consumption | 60 W |
| Power Supply | 220 V / 50 Hz |
| Dimension (L × W × H) | 600 × 480 × 800 mm |
| Weight | 58 Kg |
Features
Applications
Bottle Perpendicularity Tester measures the deviation of a bottle’s vertical axis from true perpendicularity and is utilized in the beverage industry, pharmaceutical industry, cosmetic industry, packaging manufacturing, research and development, and regulatory compliance.
Standard Accessories
Optional Accessories
Testoz Glass Testing Equipment are designed to evaluate the mechanical, thermal, and optical properties of glass products, ensuring quality, and durability. These are equipped with advanced sensors that enable versatile testing for a wide range of glass types. They are integrated with a user-friendly interface, featuring digital controls and LCD/LED displays, simplifying operation and real-time data visualization. Our glass testing equipment feature durable construction and customizable parameters for various glass sizes and applications. These instruments comply with international standards, including ISO 719, ASTM C1036, EN 12150, and ANSI Z97.1, ensuring reliability, accuracy, and safety.
