Get Quote
Price: $3240

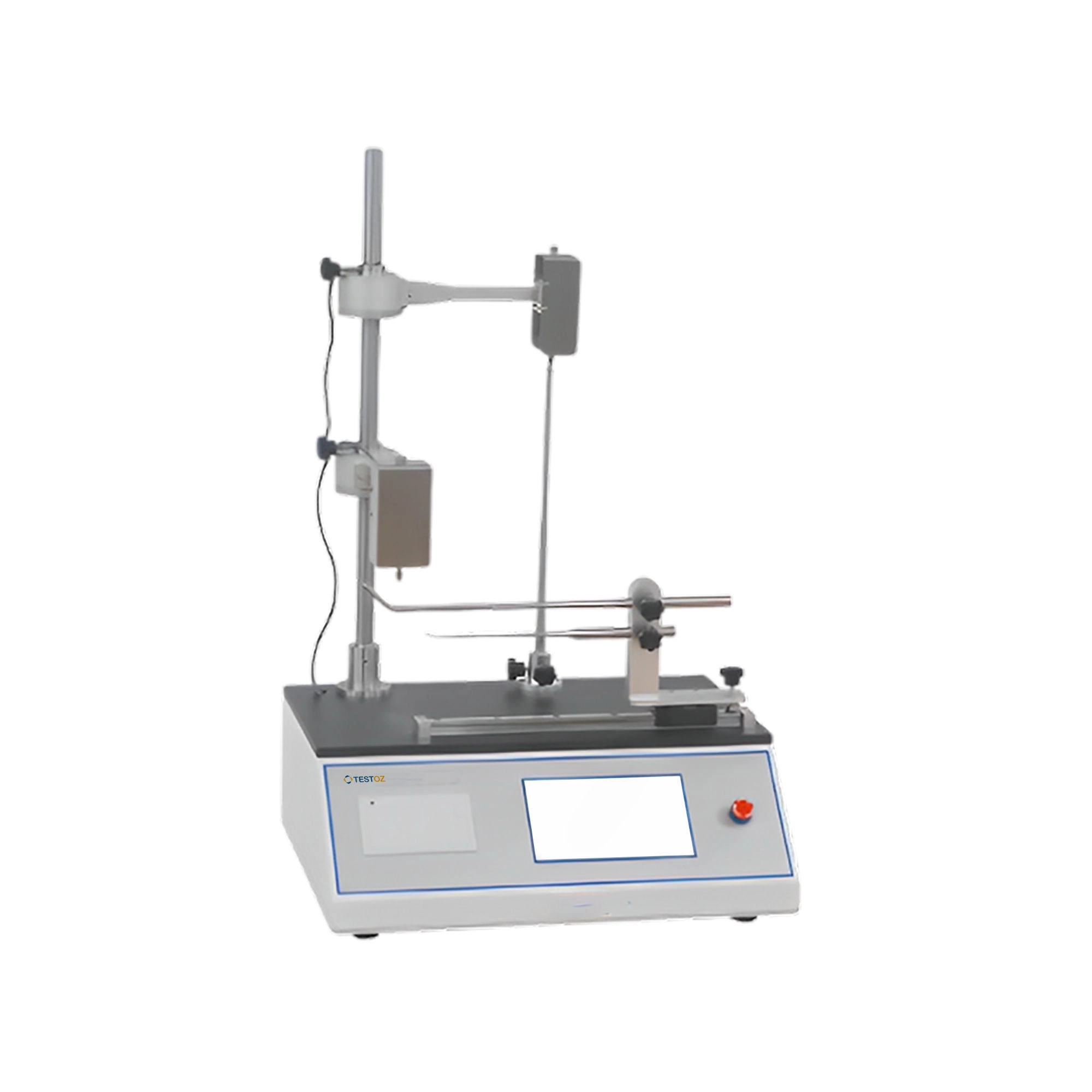

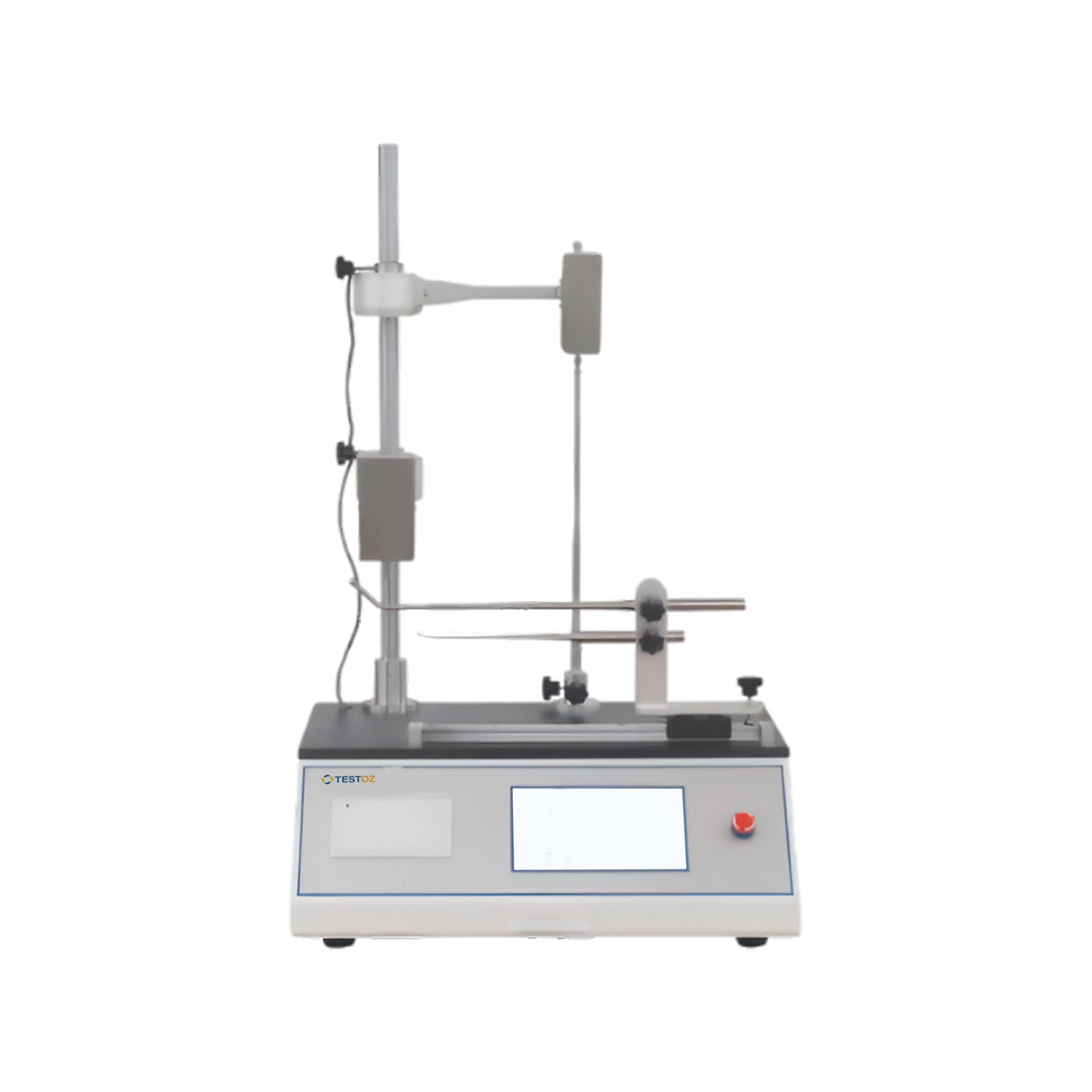

Glass Wall Thickness Gauge TZ-WTG101 operates with a test range from 0 to 12.7 mm providing reliable measurements for a broad spectrum of glass types. It features a specimen diameter of 5 mm to 300 mm ensuring versatility and precision. It is equipped with a 7-inch colourful LCD touchscreen for clear data visualization and navigating various parameters. Our thickness gauge meets international standards, ensuring quality and safety for glass measurement.
Specification
| Test Range | 0 to 12.7 mm / 0.5″ |
|---|---|
| Resolution | 0.001 mm / 0.00005″ |
| Specimen Diameter | 5 mm to 300 mm |
| Specimen Height | 5 mm to 330 mm |
| Ambient Temperature | 15 to 50℃ |
| Ambient Humidity | 10 to 90% |
| Communication Port | USB |
| Standards | YBB00332002-2015,YBB00332003-2015, YBB00032004-2015, GB 12415-90 |
| Power Supply | 120VAC 60Hz / 220VAC 50Hz |
| Dimension (L x W x H) | 400 x 360 x 700 mm |
| Weighr | 25 kgs |
Features
Applications
Glass Wall Thickness Gauge measures the thickness of the glass walls and is utilized in architectural glass manufacturing, automotive industry, laboratory research, and laboratory research.
Standard Accessories
Testoz Glass Testing Equipment are designed to evaluate the mechanical, thermal, and optical properties of glass products, ensuring quality, and durability. These are equipped with advanced sensors that enable versatile testing for a wide range of glass types. They are integrated with a user-friendly interface, featuring digital controls and LCD/LED displays, simplifying operation and real-time data visualization. Our glass testing equipment feature durable construction and customizable parameters for various glass sizes and applications. These instruments comply with international standards, including ISO 719, ASTM C1036, EN 12150, and ANSI Z97.1, ensuring reliability, accuracy, and safety.
