Price: $3360

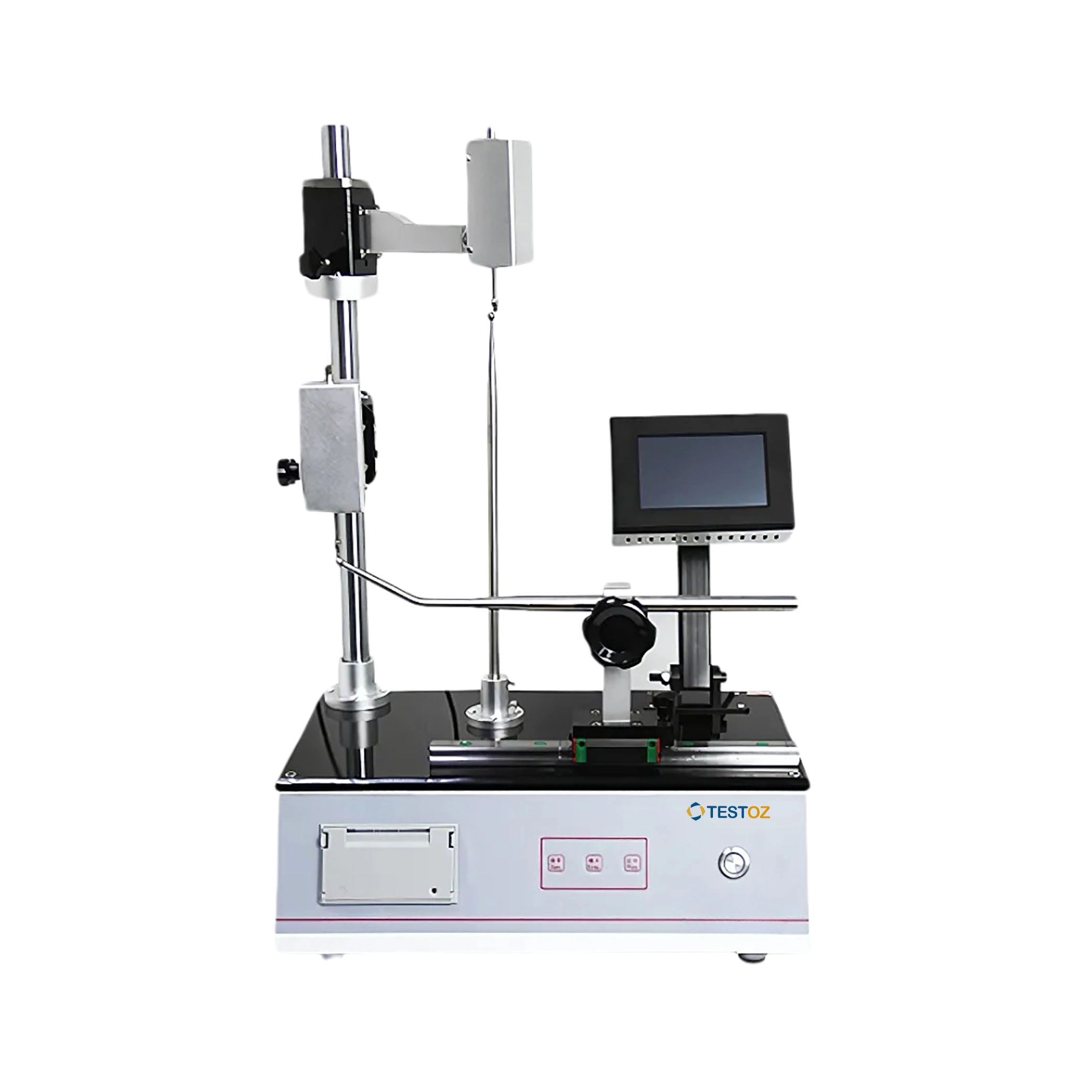

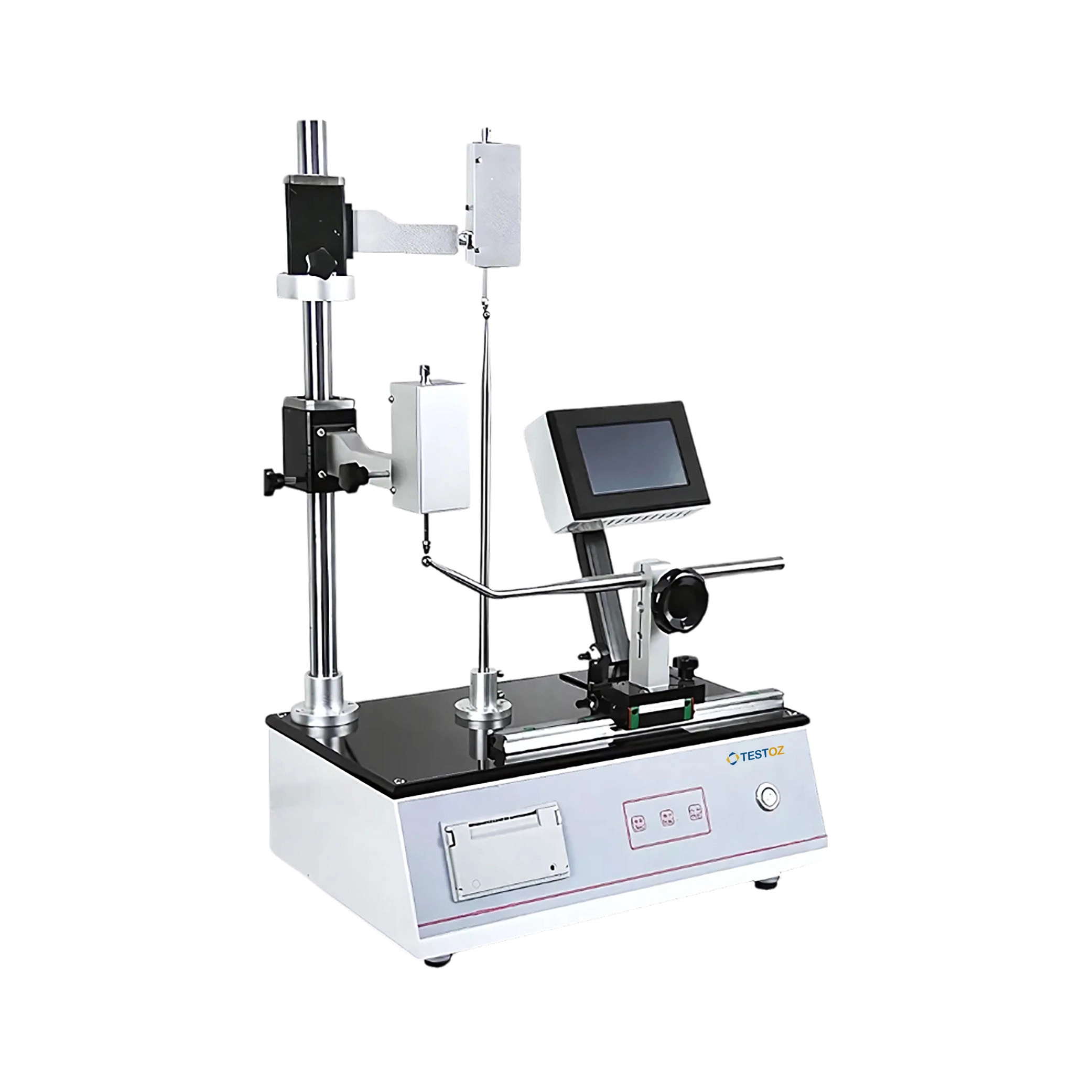

Glass Wall Thickness Gauge TZ-WTG100 measures thickness from 0 to 10 mm, ideal for ampoules, vials, infusion bottles, beer bottles, and plastic bottles. It features dual testing functions measuring both the bottom and sidewall thickness. It operates within a temperature range from 15°C to 50°C for optimal performance. Our thickness gauge complies with ISO8536-1:2006 ensuring precise measurements.
Specification
| Thickness Range | 0 to 10 mm |
|---|---|
| Dividing Value | 0.001 mm |
| Specimen Diameter | 10 to 120 mm |
| Height | 10 to 290 mm |
| Temperature Range | 15°C to 50°C |
| Humidity | < 80% RH |
| Standard | ISO8536-1:2006 |
| Power Supply | 220V 50Hz |
| Dimension | 420 × 280 × 655 mm |
| Weight | 25 kgs |
Features
Non-destructive testing
Integrated with digital display
Incorporated with micro printer
Adopts high-speed processing chip
Applications
Glass Wall Thickness Gauge is used to measure the thickness of materials, especially ampoules, vials, infusion bottles, beer bottles, and plastic bottles in food, medicine, cosmetics and other industries.
Standard Accessories
Testoz Glass Testing Equipment are designed to evaluate the mechanical, thermal, and optical properties of glass products, ensuring quality, and durability. These are equipped with advanced sensors that enable versatile testing for a wide range of glass types. They are integrated with a user-friendly interface, featuring digital controls and LCD/LED displays, simplifying operation and real-time data visualization. Our glass testing equipment feature durable construction and customizable parameters for various glass sizes and applications. These instruments comply with international standards, including ISO 719, ASTM C1036, EN 12150, and ANSI Z97.1, ensuring reliability, accuracy, and safety.
