Price: $6240

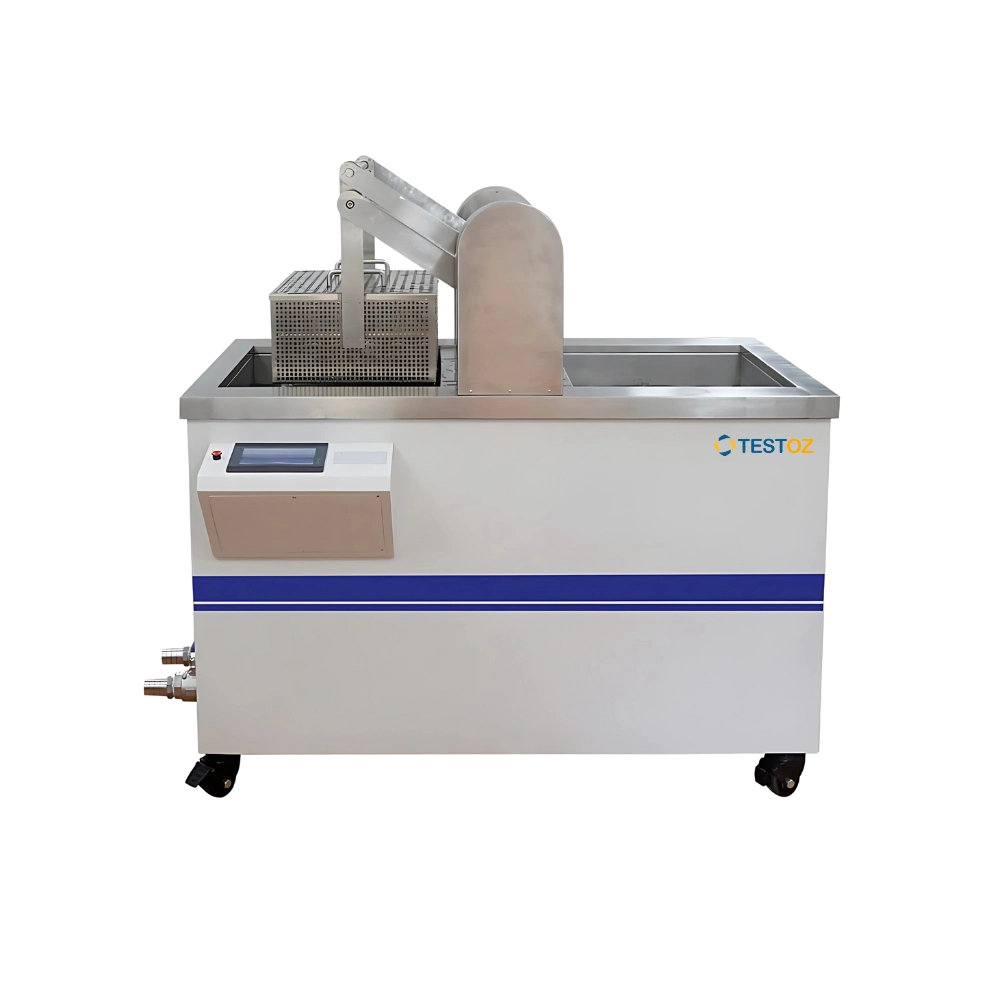

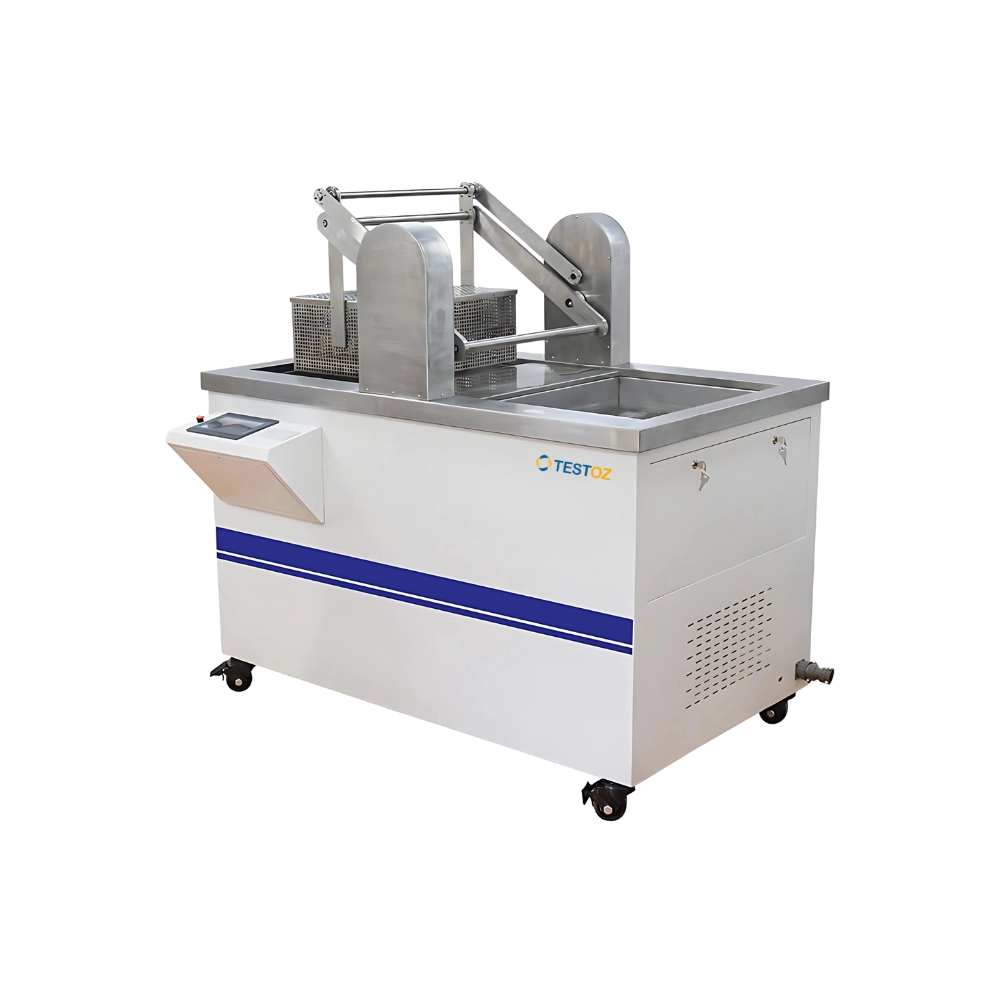

Thermal Shock Resistance Tester TZ-TSR101 is a microcomputer-controlled system and operates across a broad range of temperatures from ambient to 99℃. It operates with a test pressure range of 0.4 MPa to 0.6 Mpa evaluating durability and resistance. Our tester is integrated with a touch interface for real-time monitoring and easy operation of various parameters. It complies with international standards ensuring reliable performance, consistent quality, and meeting testing requirements.
Specification
| Temperature Range | Ambient to 99℃ |
|---|---|
| Temperature-Control | Automatic |
| Accuracy | ±0.5℃ |
| Resolution | 0.1℃ |
| Hot and Cold Water Conversion Time |
High speed:10 s Low speed: 16s |
| Capacity |
Hot water tank: 50 L Cold water tank: 50 L |
| Pump Flow | 86 L/min |
| Test Pressure | 0.4 MPa to 0.6 MPa |
| Air Connection | Ф6mm PU Tube |
| Standards | GB/T 4547-2007, YBB00182003-2015, ASTM C149 |
| Power | 120VAC 60Hz / 220VAC 50Hz |
| Dimension (L × B × H) | 880 × 530 × 1300mm |
| Weight | 50 kg |
Features
Crafted with stainless steel
Aluminum-sealing technology
Incorporated with a water circulation system
Pneumatic lifting mode basket
Applications
Thermal Shock Resistance Tester evaluates a material's ability to withstand rapid temperature changes and is widely utilized in glass manufacturing, electronics industry, automotive industry, aerospace, the packaging industry, and research and development.
Standard Accessories
Testoz Glass Testing Equipment are designed to evaluate the mechanical, thermal, and optical properties of glass products, ensuring quality, and durability. These are equipped with advanced sensors that enable versatile testing for a wide range of glass types. They are integrated with a user-friendly interface, featuring digital controls and LCD/LED displays, simplifying operation and real-time data visualization. Our glass testing equipment feature durable construction and customizable parameters for various glass sizes and applications. These instruments comply with international standards, including ISO 719, ASTM C1036, EN 12150, and ANSI Z97.1, ensuring reliability, accuracy, and safety.
