Price: $9000

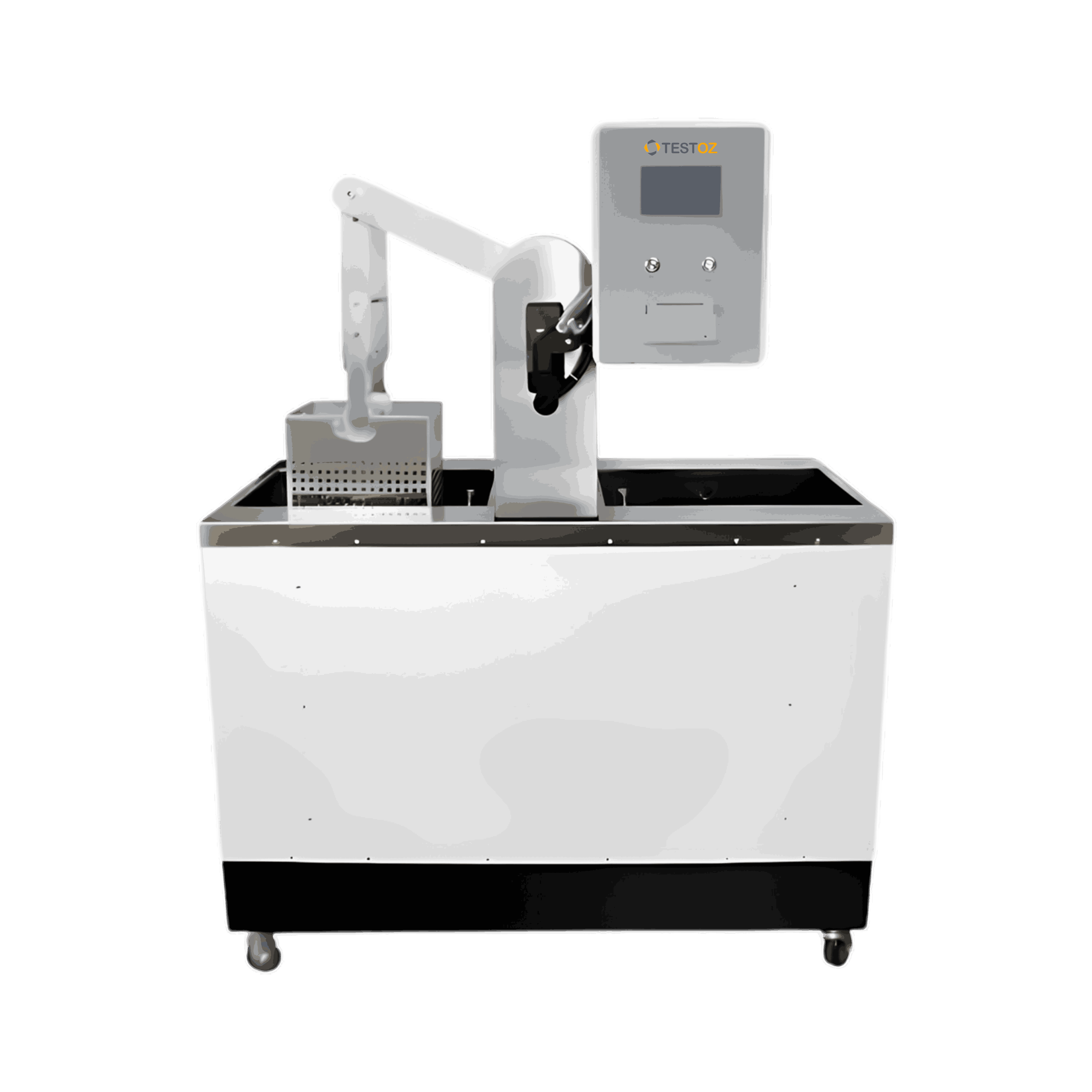

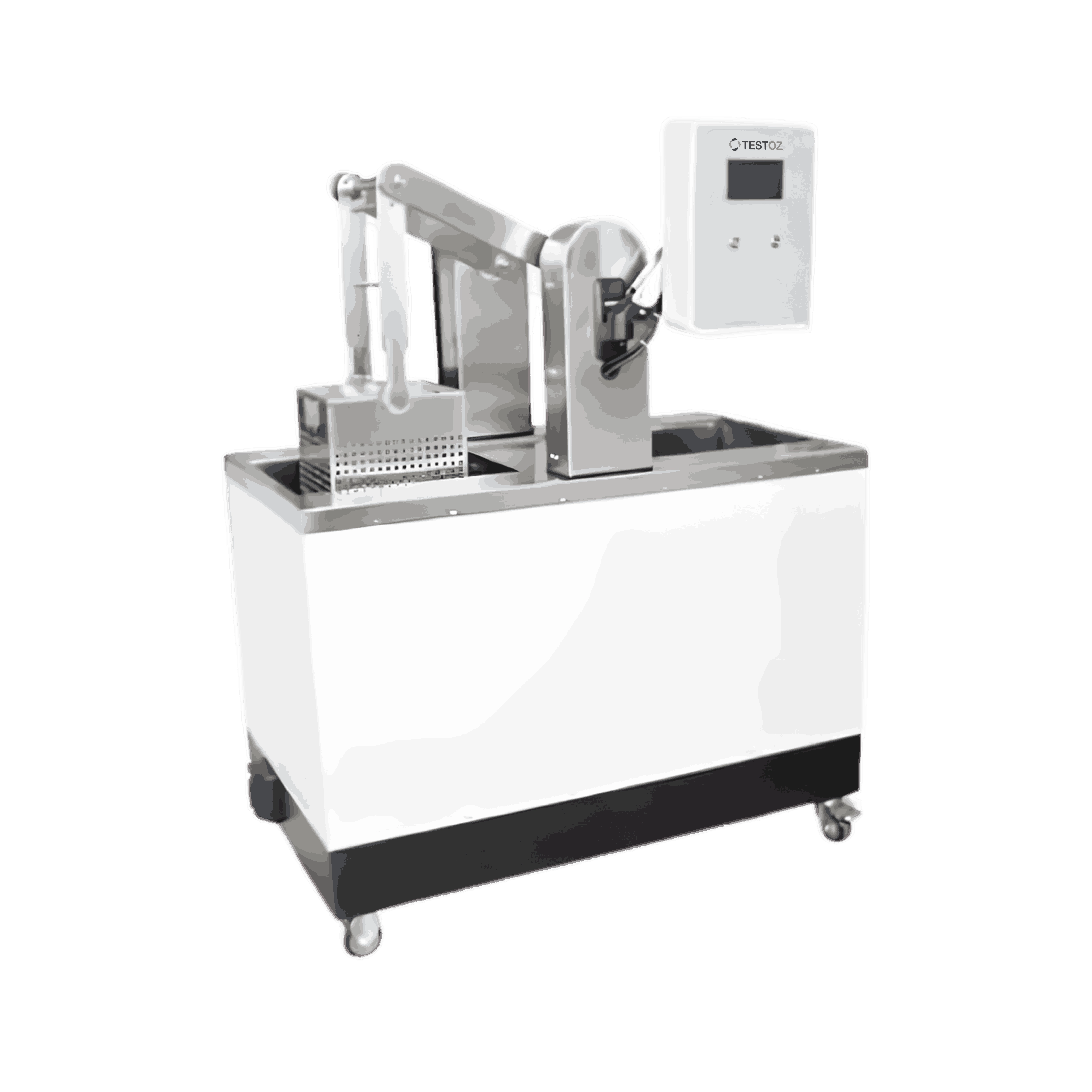

Thermal Shock Resistance Tester TZ-TSR100 operates within a temperature range from 0 to 70 ℃ testing structural integrity and resistance. Our tester is equipped with two separate water tanks each with a capacity of 80L providing a controlled environment. It is designed with two heating modes for efficient heating and consistent results. It is integrated with an LCD touchscreen for easy monitoring of parameters and easy operation.
Specification
| Temperature Range | 0 to 70 ℃ |
|---|---|
| Temperature Control Accuracy | ± 1 ℃ |
| Temperature Resolution | 0.1 ℃ |
| Cold Water Tank Volume | 80 L |
| Hot Water Tank Volume | 80 L |
| Cold Water Constant Temperature Time | 1 to 30,000s |
| Hot Water Constant Temperature Time | 1 to 30,000s |
| Timing Resolution | 0.1 s |
| Hot and Cold Water Conversion Time | 11 s |
| Heating Speed |
40 ℃/h (Auxiliary heat) 20 ℃/h (Without auxiliary heat) |
| Heating Power |
3,000 W (Without auxiliary heat) 6,000 W (Auxiliary heat) |
| Refrigeration Unit Power | 500 W |
| Working Temperature | 5 ℃ to 40 ℃ |
| Maximum Relative Humidity | 80% |
| Standards | ISO 7459:2004 ;GB/T4547 YBB00182003-2015 |
| Power | 220 V, 50 Hz |
| Dimensions (L × W × H) | 1100 × 655 × 1270 mm |
| Weight | 130 kg |
Features
Utilizes high-speed processing chip
Stainless steel tanks
Includes micro printer
Complies with international standards
Applications
Thermal Shock Resistance Tester is designed to evaluate the resistance of glass bottles and utilized in quality assurance in manufacturing, packaging development, research and development, and industrial compliance.
