Price: $9000

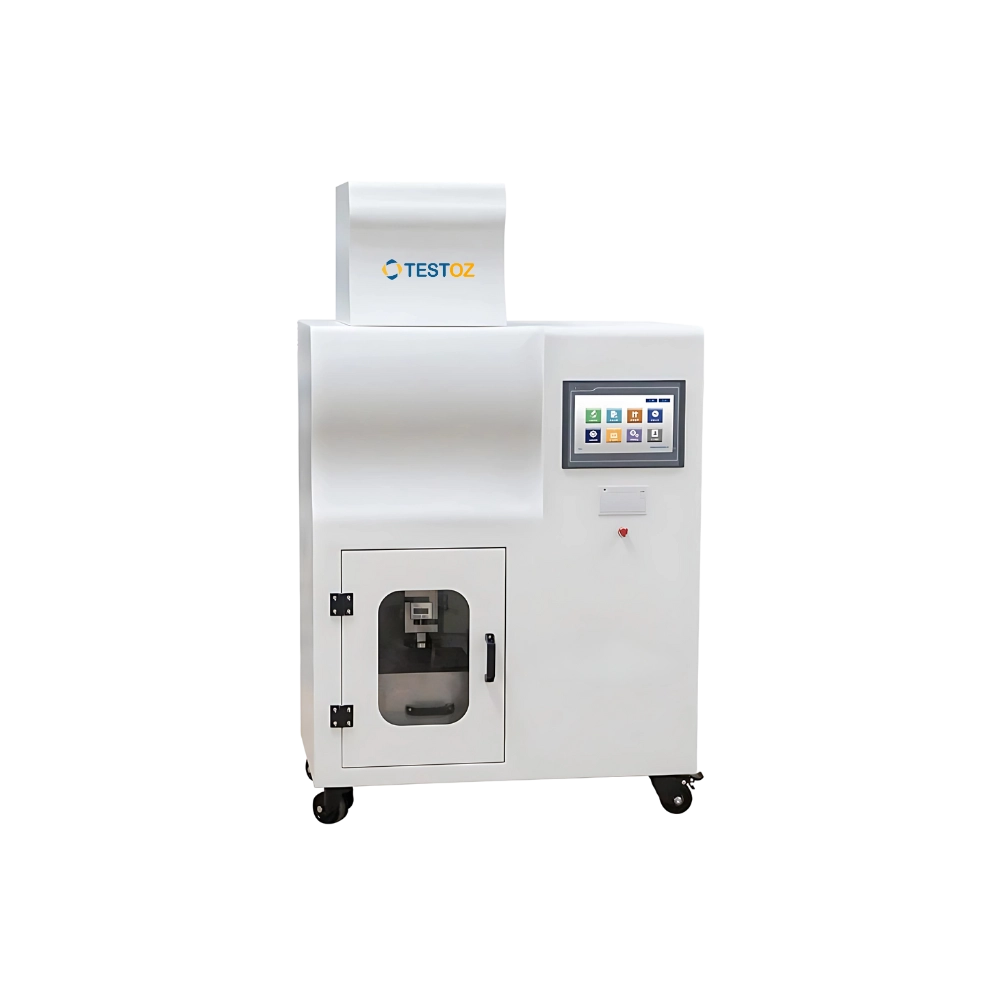

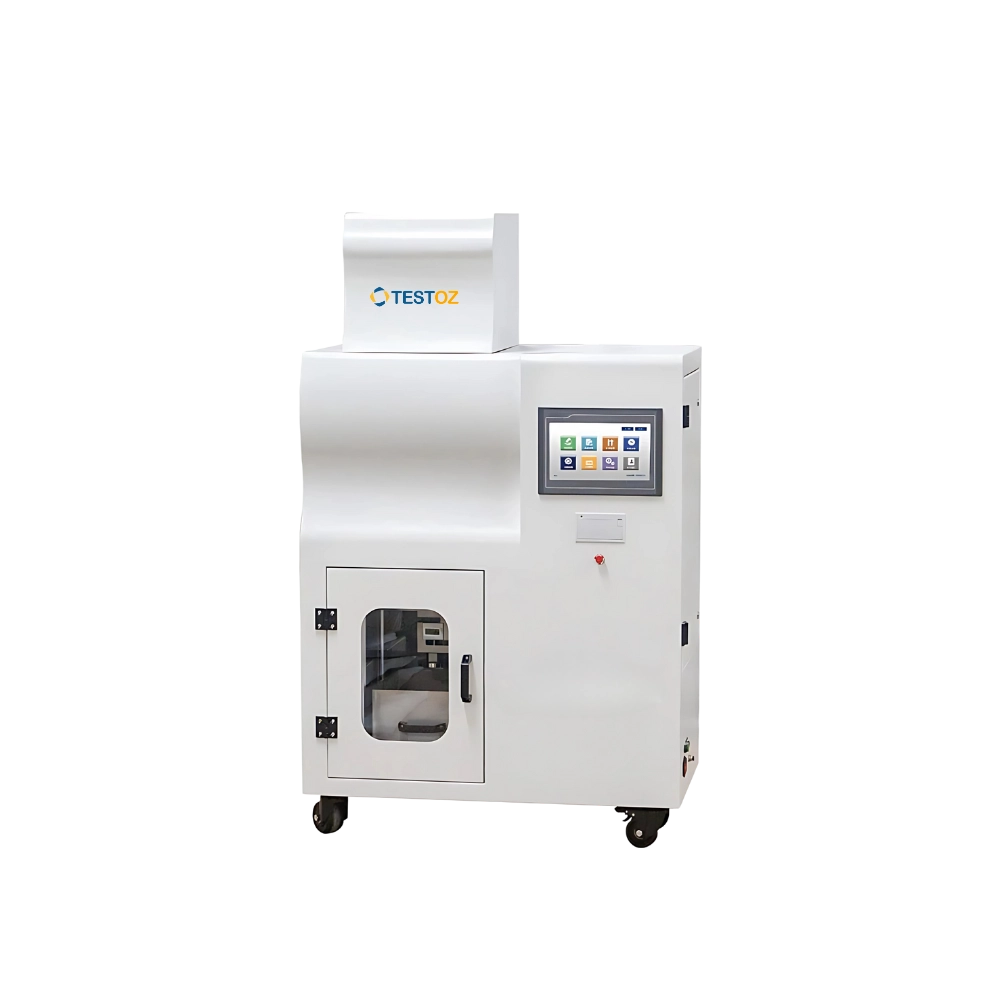

Glass Bottle Top Load Tester TZ-GBTL100 features a load range from 0 to 25,000 N and offers flexibility and precision for testing the strength and durability. It tests samples with a size <180mm accurately testing a wide range of bottle sizes. Our tester is equipped with a touch screen for clear data visualization and navigation of parameters. It complies with various standards and meets industry regulations for safety, accuracy, and reliability.
Specification
| Load Range | 0 to 25,000 N |
|---|---|
| Resolution |
1 N (test range ≤ 5000 N) 10 N (test range ≥ 10,000 N) |
| Sample Size |
Diameter ≤ 180 mm Height: 100 to 420 mm |
| Standards | GB/T 22934-2008、ISO 8113:2004、GB/T 4546-2008、YBB00172003-2015 |
| Power Supply | 220 VAC ±5% |
| Dimension (L × B × H) | 800 × 500 × 1300 mm |
| Weight | 200 kg |
Features
Includes preset test mode
Records 10 operators and 30 products
Adjustable lifting speed
Crafted with stainless steel & aluminum
Safety door lock design
USB port
Applications
Glass Bottle Top Load Tester evaluate the structural integrity and strength of glass bottles by simulating load and is widely used in the beverage industry, pharmaceutical industry, cosmetic industry, and glass bottle manufacturing.
Standard Accessories
Testoz Glass Testing Equipment are designed to evaluate the mechanical, thermal, and optical properties of glass products, ensuring quality, and durability. These are equipped with advanced sensors that enable versatile testing for a wide range of glass types. They are integrated with a user-friendly interface, featuring digital controls and LCD/LED displays, simplifying operation and real-time data visualization. Our glass testing equipment feature durable construction and customizable parameters for various glass sizes and applications. These instruments comply with international standards, including ISO 719, ASTM C1036, EN 12150, and ANSI Z97.1, ensuring reliability, accuracy, and safety.
